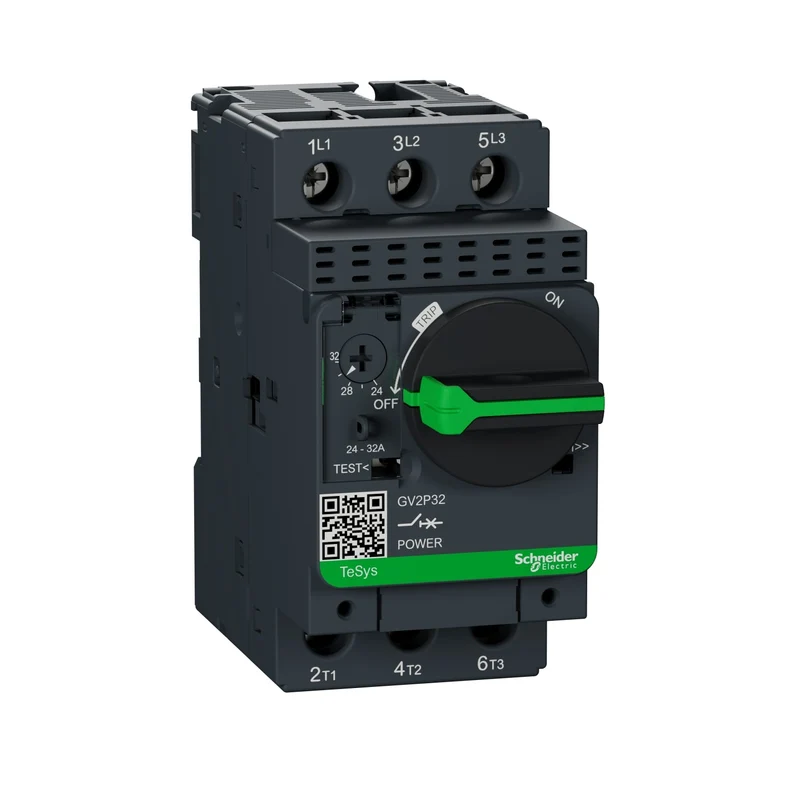

Schneider GV2P32 TeSys GV2 Motor Circuit Breaker 24–32A 3P 15kW 100kA

The Schneider Electric GV2P32 is a 3-pole TeSys GV2 motor circuit breaker with thermomagnetic protection, covering a current range of 24–32 A for industrial motor protection applications.

• Reference: GV2P32
• Range: TeSys GV2
• Model: GV2P
• Type: Motor circuit breaker with thermomagnetic protection
• Poles: 3P
• Rated current: 24–32 A
• Motor power: 15 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz per IEC 60947-2
• Utilisation category: Category A per IEC 60947-2
