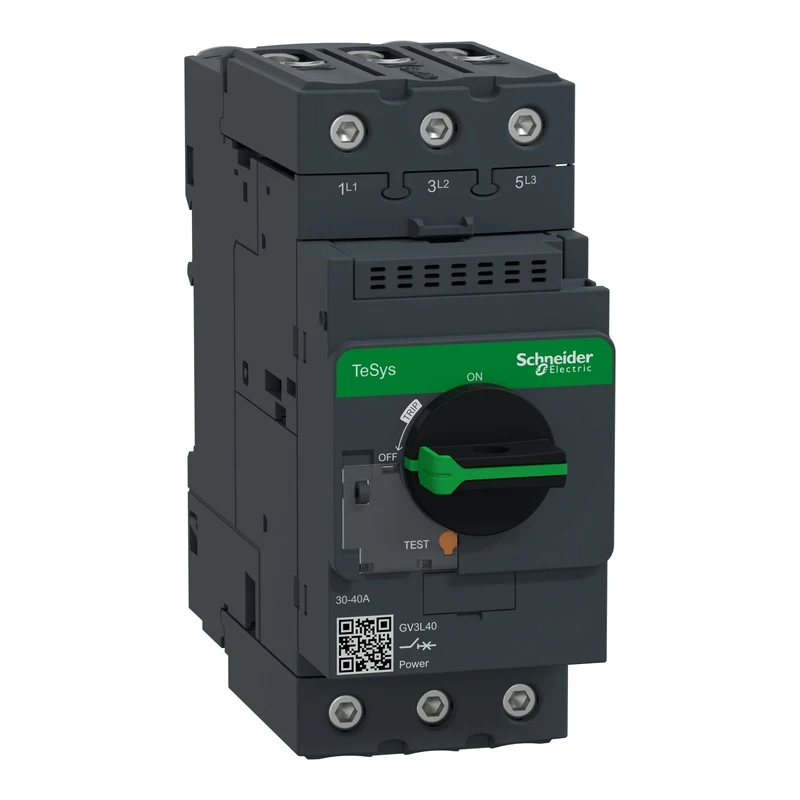

Schneider GV3L40 TeSys GV3 Motor Circuit Breaker 40A 3P 18.5kW 100kA

The Schneider Electric GV3L40 is a 3-pole motor circuit breaker in the TeSys GV3 range, designed for overcurrent protection of motors up to 18.5 kW, fitted with EverLink BTR connectors for secure wiring termination.

• Reference: GV3L40
• Range: TeSys GV3
• Model: GV3L
• Product type: Motor circuit breaker
• Poles: 3P
• Rated current (In): 40 A
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz
• Motor power: 18.5 kW at 400/415 V AC 50/60 Hz
• Connectors: EverLink BTR
• Utilisation category: Category A per IEC 60947-2
