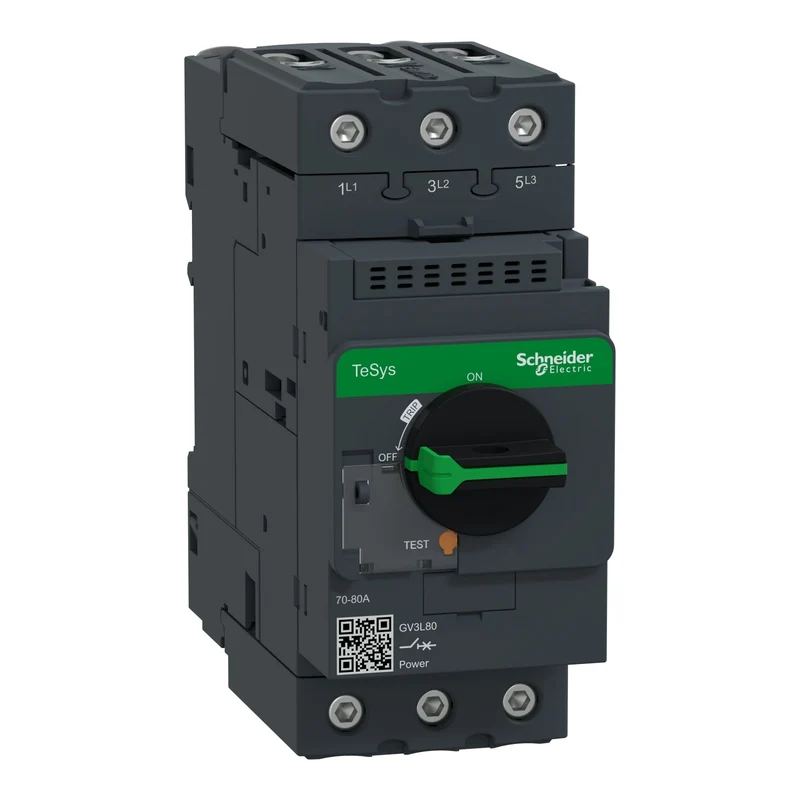

Schneider GV3L80 TeSys GV3 Motor Protection Circuit Breaker 3P 80A

The Schneider Electric GV3L80 is a 3-pole magnetic motor protection circuit breaker from the TeSys GV3 range, designed to protect motors and motor branch circuits against short-circuit faults in industrial installations. It features a rotary handle and EverLink terminals.

• Reference: GV3L80
• Range: TeSys GV3
• Product type: Motor protection circuit breaker, magnetic
• Poles: 3P
• Rated current: 80 A
• Breaking capacity (Icu): 50 kA at 400/415 V AC 50/60 Hz
• Motor power: 45 kW at 400/415 V AC
• Maximum current: 750 A
• Terminals: EverLink
• Utilisation category: Category A (IEC 60947-2)
