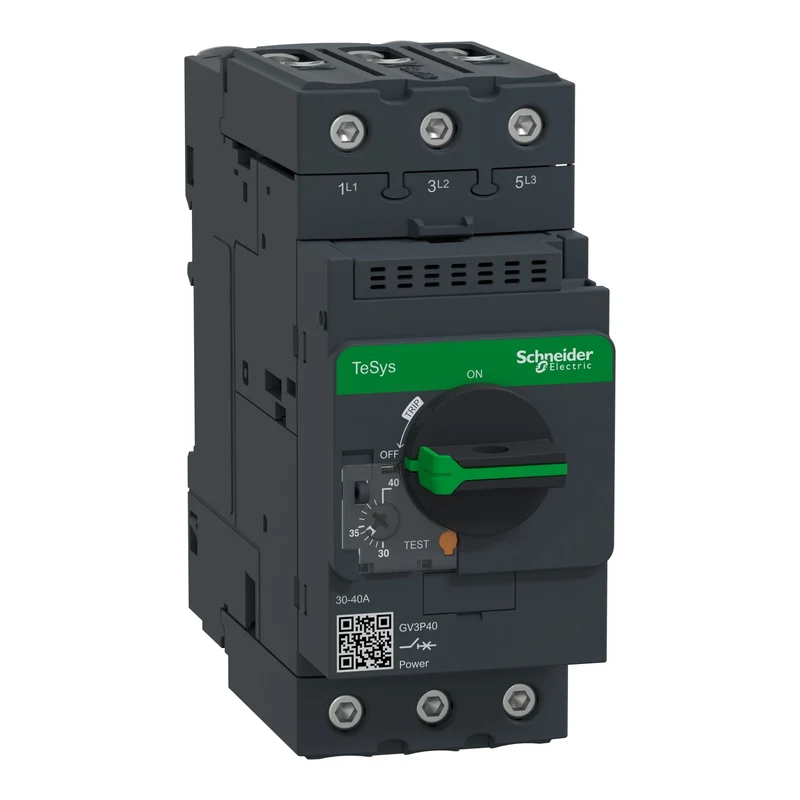

Schneider GV3P40 TeSys GV3 Motor Circuit Breaker 30-40A 3P 18.5kW

The Schneider Electric GV3P40 is a TeSys GV3 series 3-pole motor circuit breaker with thermal-magnetic protection, rated for a current setting range of 30 to 40 A, designed for motor protection per IEC 60947-2, and fitted with EverLink BTR screw terminals.

• Reference: GV3P40
• Range: TeSys GV3
• Model: GV3P
• Product type: Motor circuit breaker
• Poles: 3P
• Current setting range: 30...40 A
• Motor power: 18.5 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz per IEC 60947-2
• Utilisation category: Category A per IEC 60947-2
• Terminals: EverLink BTR
