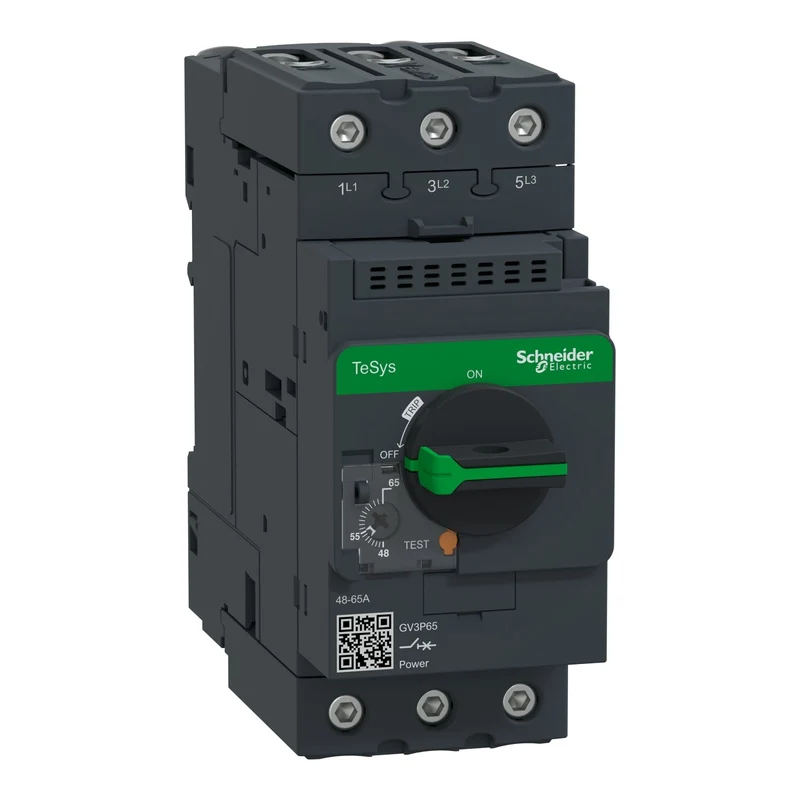

Schneider GV3P65 TeSys GV3 Motor Circuit Breaker 3P 65A 30kW

The Schneider Electric GV3P65 is a 3-pole motor circuit breaker in the TeSys GV3 range, providing thermomagnetic motor protection with a current setting range of 48–65 A for industrial motor applications.

• Reference: GV3P65
• Range: TeSys GV3
• Model: GV3P
• Type: Motor circuit breaker, 3-pole
• Current setting range: 48–65 A
• Rated current (In): 65 A
• Motor power: 30 kW at 400/415 V AC 50/60 Hz
• Breaking capacity (Icu): 100 kA at 230/240 V AC 50/60 Hz (IEC 60947-2)
• Terminals: EverLink BTR
• Utilisation category: Category A (IEC 60947-2)
