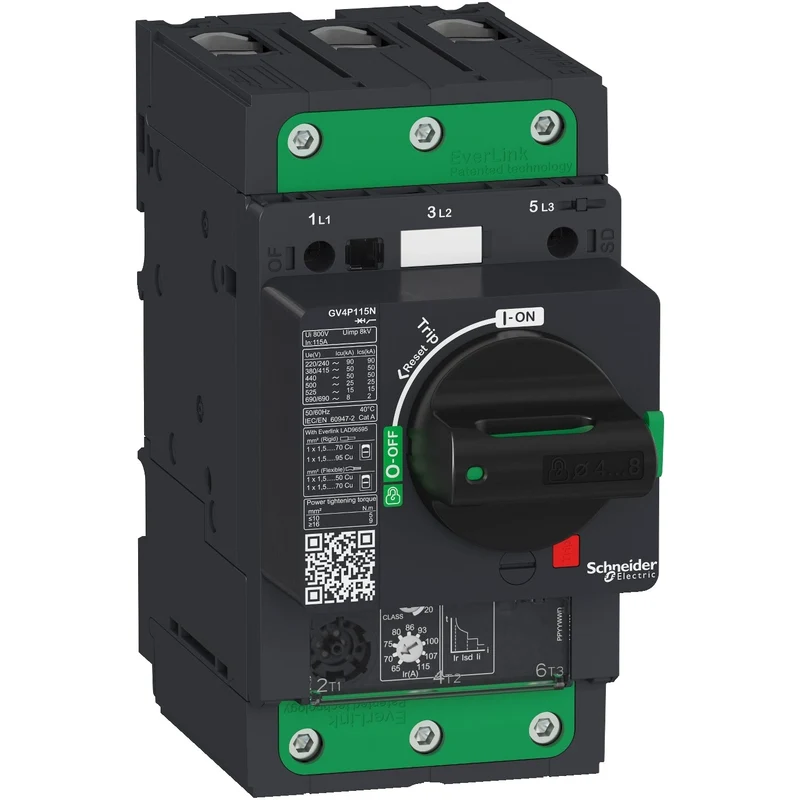

Schneider GV4P115N TeSys GV4 Motor Circuit Breaker 3P 115A 100kA

The Schneider Electric GV4P115N is a 3-pole thermomagnetic motor circuit breaker from the TeSys GV4 range, rated at 115 A and designed to protect motors up to 37 kW against overload and short-circuit conditions. It features Everlink push-in power terminals.

• Reference: GV4P115N
• Range: TeSys GV4
• Model: GV4P
• Type: Motor circuit breaker, thermomagnetic
• Poles: 3P
• Rated current (In): 115 A
• Breaking capacity (Icu): 100 kA at 220-240 V AC 50/60 Hz per IEC 60947-2; 50 kA per product designation
• Motor power: 37 kW at 400-415 V AC 50/60 Hz
• Utilisation category: Category A per IEC 60947-2
• Terminals: Everlink
