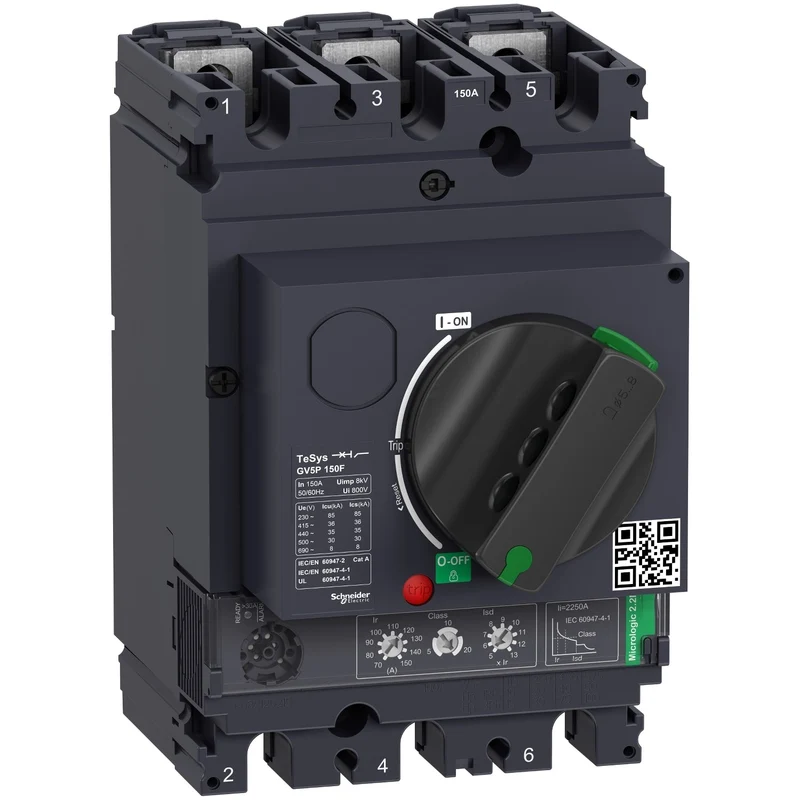

Schneider GV5P150F TeSys GV5 Motor Circuit Breaker 3P 150A 36kA

The Schneider Electric GV5P150F is a 3-pole thermal magnetic motor circuit breaker from the TeSys GV5 range, designed for motor protection in industrial installations with a 150 A rated current and 36 kA breaking capacity.

• Reference: GV5P150F
• Range: TeSys GV5
• Model: GV5P
• Type: Motor circuit breaker, thermal magnetic
• Poles: 3P
• Rated current (In): 150 A at 65°C
• Breaking capacity (Icu): 36 kA at 400/415 V AC 50/60 Hz per IEC 60947-2
• Motor power: 55…75 kW at 400/415 V AC 50/60 Hz
• Utilisation category: Category A per IEC 60947-2
