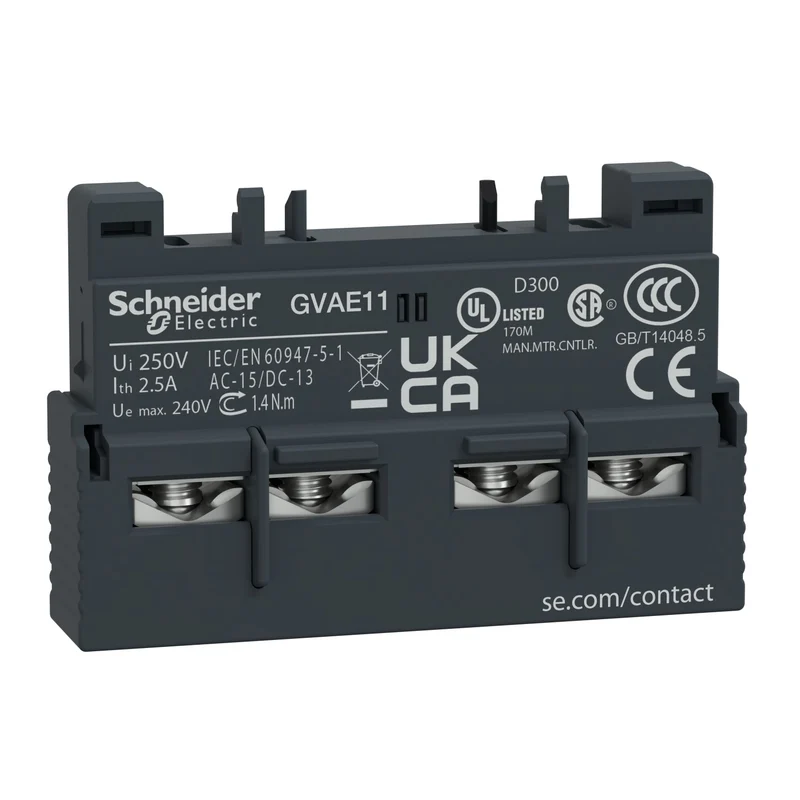

Schneider GVAE11 TeSys Deca Auxiliary Contact Block 1NO+1NC Front Mount GV2

5,10 €3,13 €Im Angebot
Menge

Beschreibung

The Schneider Electric GVAE11 is a front-mount auxiliary contact block for TeSys GV2 and GV3 motor circuit breakers, providing a 1 NO + 1 NC contact arrangement for signalling and interlocking. It operates across a rated voltage of 24 to 240 V AC and 24 to 60 V DC, with a conventional free air thermal current of 2.5 A. Compatible with GV2P, GV2ME, GV2L, GV2LE, GV2RT, GV3P, and GV3L variants, it is supplied in sets of 10.

Technical specifications:

  • Commercial reference: GVAE11
  • Manufacturer: Schneider Electric
  • EAN: 3389110343434
  • Series / range: TeSys / TeSys Deca
  • Product type: Auxiliary contact block
  • Contact arrangement: 1 NO + 1 NC
  • Mounting location: Front
  • Compatible devices: GV2P, GV2RT, GV2ME, GV2L, GV2LE, GV3P, GV3L
  • Rated insulation voltage (Ui): 250 V AC (IEC 60947-1) / 300 V (UL 508, CSA C22.2 No 14)
  • Rated operational voltage (Ue): 24-240 V AC / 24-60 V DC
  • Conventional free air thermal current (Ith): 2.5 A
  • Minimum switching current: 5 mA
  • Minimum switching voltage: 17 V
  • Mechanical durability: 100,000 cycles
  • Electrical durability: 100,000 cycles
  • Screw terminal tightening torque: 1.4 N.m
  • Dimensions (W x H x D): 45 x 11 x 29 mm
  • Weight: 0.02 kg
  • Certification: UKCA
  • Quantity per set: 10 pieces

Features and benefits:

  • Front-mount design allows fast installation directly onto GV2 and GV3 motor circuit breakers
  • 1 NO + 1 NC contacts enable simultaneous status signalling and circuit interlocking
  • Wide AC and DC voltage range supports diverse control circuit configurations
  • Low minimum switching threshold (5 mA at 17 V) ensures compatibility with PLC and low-level signal interfaces
  • 100,000 mechanical and electrical operating cycles for reliable long-term performance

Applications:

  • Status signalling and fault indication on GV2 and GV3 motor circuit breakers
  • Interlocking circuits in motor control centres and industrial distribution panels
  • PLC feedback and automation system integration in machine building
  • OEM motor starter assemblies requiring compact front-mount accessories

Compliant with IEC 60947-1. Part of the Schneider Electric TeSys Deca range.

Also known as: Schneider GVAE11, Schneider Electric GVAE11, GV2 auxiliary contact block, TeSys motor breaker auxiliary contact.
