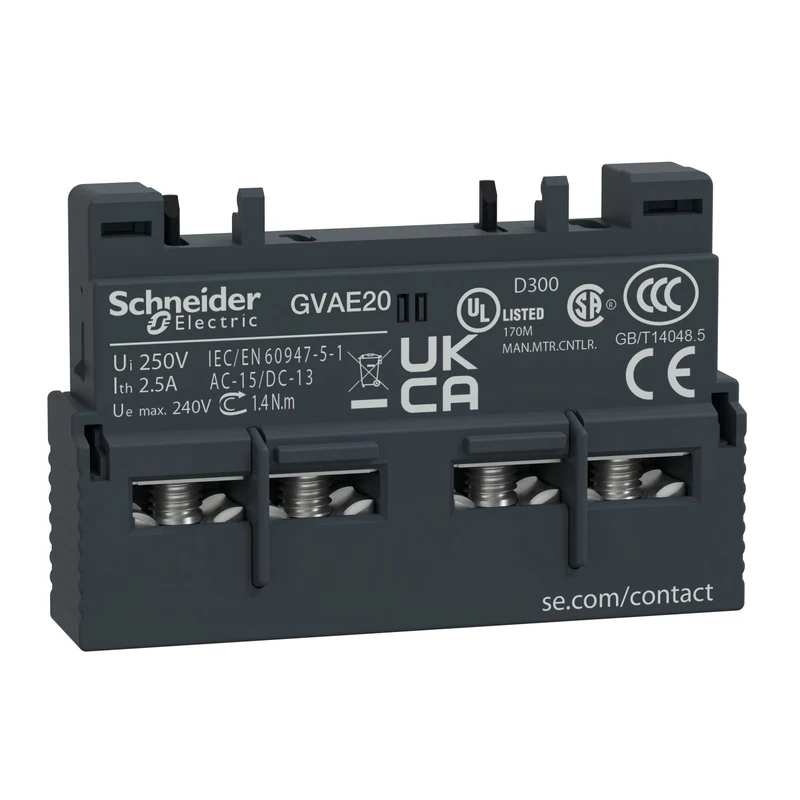

Schneider GVAE20 TeSys Deca Auxiliary Contact Block 2NO Front Mount GV2

The Schneider Electric GVAE20 is a front-mount auxiliary contact block for the TeSys GV2 and GV3 motor circuit breaker families, providing 2 normally open (NO) contacts for signalling and control circuits. It supports operating voltages from 24 to 240 V AC and 24 to 60 V DC, with a thermal current of 2.5 A and 100,000 cycles of mechanical endurance.

Technical specifications:

• Commercial reference: GVAE20
• Manufacturer: Schneider Electric
• EAN: 3389110343465
• Series / range: TeSys / TeSys Deca
• Product type: Auxiliary contact block
• Contact arrangement: 2 NO
• Mounting location: Front side
• Compatible devices: GV2L, GV2P, GV2ME, GV2LE, GV2RT, GV3P, GV3L, LS1D32
• Rated insulation voltage [ui]: 250 V (IEC 60947-1), 300 V (UL 508), 300 V (CSA C22.2 No 14)
• Rated operating voltage [ue]: 24-240 V AC / 24-60 V DC
• Thermal current in air [ith]: 2.5 A
• Mechanical endurance: 100,000 cycles
• Electrical endurance: 100,000 cycles
• Minimum switching current: 5 mA
• Minimum switching voltage: 17 V
• Screw terminal tightening torque: 1.4 N.m
• Dimensions (W x H x D): 45 x 11 x 29 mm
• Weight: 0.02 kg
• Certification: UKCA

Features and benefits:

• Front-mount design compatible with a wide range of TeSys GV2 and GV3 motor circuit breakers
• 2 NO contact configuration supports signalling, interlocking, and status feedback functions
• Wide operating voltage range - 24-240 V AC and 24-60 V DC - for versatile panel integration
• 100,000 mechanical and electrical operating cycles for long service life
• Screw terminal connection with 1.4 N.m tightening torque for secure and reliable wiring

Applications:

• Motor control panels built around TeSys GV2 or GV3 motor circuit breakers
• Signalling and status indication circuits in industrial automation panels
• Interlocking and feedback circuits in motor starter assemblies
• Machine building where auxiliary contact outputs are required from motor protection devices

Compliant with IEC 60947-1, UL 508, and CSA C22.2 No 14. Part of the Schneider Electric TeSys Deca range.

Also known as: Schneider GVAE20, Schneider Electric GVAE20, TeSys GV2 auxiliary contact, motor circuit breaker auxiliary contact block.
