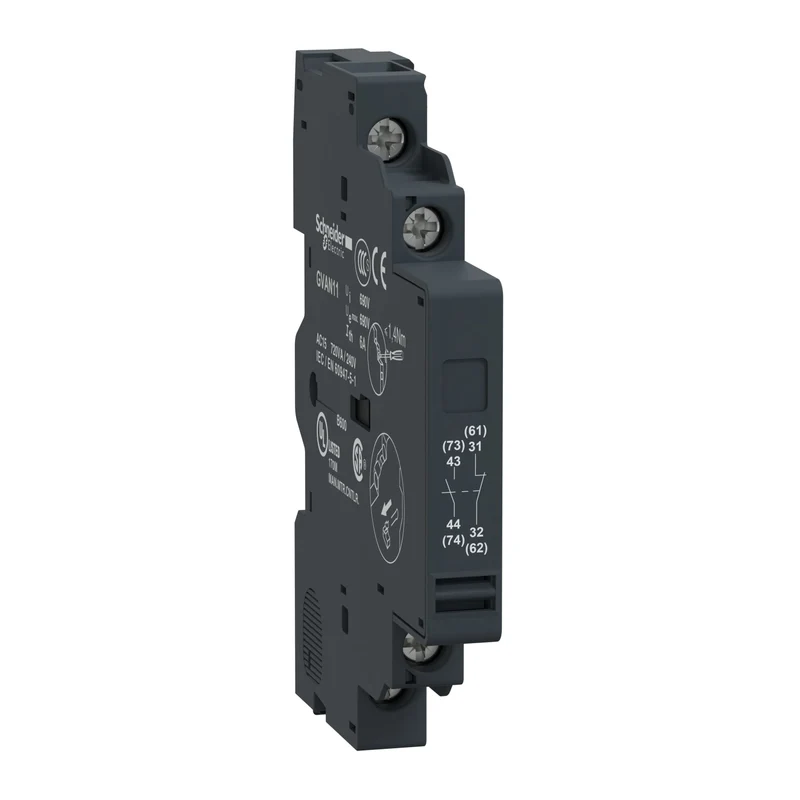

Schneider GVAN11 TeSys Deca Auxiliary Contact Block 1NO+1NC Left Side Mount

The Schneider Electric GVAN11 is a TeSys Deca auxiliary contact block with a 1 NO + 1 NC contact arrangement, designed for left-side mounting on TeSys GV2 and GV3 motor circuit breakers. It extends signaling and control capabilities of compatible motor protection devices, with a rated insulation voltage of 690 V per IEC 60947-1 and a conventional thermal current of 6 A.

Technical specifications:

• Commercial reference: GVAN11
• Manufacturer: Schneider Electric
• EAN: 3389110343489
• Series / range: TeSys Deca
• Product type: Auxiliary contact block
• Contact arrangement: 1 NO + 1 NC
• Mounting location: Left side
• Compatible with: GV2ME, GV2RT, GV2L, GV2LE, GV2P, GV3P, GV3L
• Rated insulation voltage [Ui]: 600 V (UL 508), 690 V (IEC 60947-1), 600 V (CSA C22.2 No 14)
• Rated operational voltage [Ue]: 48...690 V AC / 24...240 V DC
• Conventional thermal current [Ith]: 6 A
• Mechanical durability: 100,000 cycles
• Minimum switching current: 5 mA
• Minimum switching voltage: 17 V
• Tightening torque: 1.4 N.m (screw terminal blocks)
• Dimensions (H x W x D): 89 x 9.3 x 66 mm
• Weight: 0.05 kg
• Color: Dark grey
• Certification: UKCA

Features and benefits:

• Left-side mounting integrates directly with TeSys GV2 and GV3 motor circuit breakers for a compact, panel-friendly assembly
• Wide rated operational voltage range (48...690 V AC, 24...240 V DC) supports diverse control circuit designs
• 100,000 mechanical cycles ensures long service life in demanding switching applications
• Low minimum switching current (5 mA) and voltage (17 V) makes it suitable for PLC and electronic control inputs
• Narrow 9.3 mm width minimises DIN rail space consumption in control panels

Applications:

• Motor starter status signalling and feedback in industrial control panels
• Interlocking circuits in motor protection and starter assemblies
• PLC digital input signalling from GV2 and GV3 motor circuit breakers
• Control circuit expansion in machine automation enclosures
• Trip indication wiring for remote monitoring of motor protection devices

Compliant with IEC 60947-1. Part of the Schneider Electric TeSys Deca range.

Also known as: Schneider GVAN11, Schneider Electric GVAN11, TeSys GV2 auxiliary contact block, motor circuit breaker auxiliary contact.
