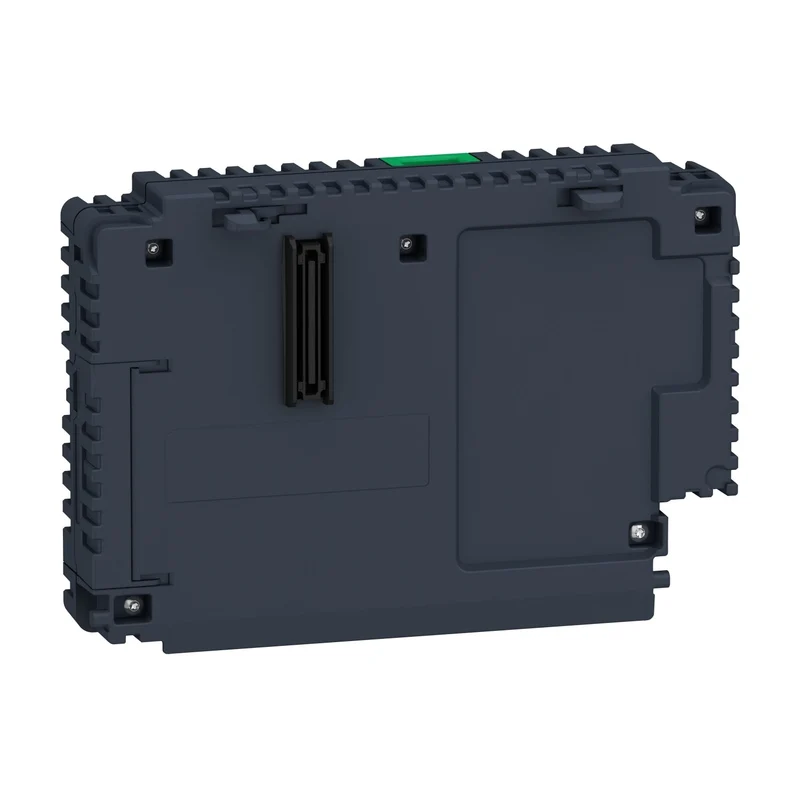

Schneider HMIG3U Main Unit Premium Box, Harmony GTU 1GB SD Card

The Schneider Electric HMIG3U is a Harmony GTU Premium Box main unit for industrial HMI and machine automation applications. Powered at 12...24 V DC, it runs on the Harmony operating system with Vijeo Designer runtime and a 600 MHz RISC processor with 256 MB RAM. Dual Ethernet TCP/IP ports and multi-standard serial interfaces make it a versatile solution for complex automation networks.

Technical specifications:

• Commercial reference: HMIG3U
• Manufacturer: Schneider Electric
• EAN: 3606480687204
• Series / range: Harmony GTU
• Product type: Main unit - Premium Box
• Rated supply voltage: 12...24 V DC
• Processor: RISC 600 MHz
• RAM: 256 MB internal / 512 kB NVRAM backup
• Data storage: 1 GB SD card
• Ethernet: 2 x RJ45, 10BASE-T/100BASE-TX/1000BASE-T
• COM1: RJ45 RS485, up to 115200 bit/s
• COM2: SUB-D 9 RS232C/RS422/RS485, up to 115200 bit/s
• USB: 2 x USB 2.0 Type A, 1 x USB 2.0 mini B
• Communication protocols: Modbus, Modbus TCP/IP, Uni-Telway
• Cooling: natural air convection
• Dimensions (W x H x D): 188 x 131 x 45 mm
• Weight: 0.9 kg
• Operating temperature: 0...60 °C
• Storage temperature: -20...60 °C
• Relative humidity: 10...90% without condensation
• Operating altitude: up to 2000 m
• Certifications: CE, CULus, ATEX, IEC-Ex, RCM, GL, KC, EAC, ABS

Features and benefits:

• Dual Ethernet TCP/IP ports for redundant or multi-network connectivity
• ATEX and IEC-Ex certified for use in hazardous area environments
• Supports Modbus, Modbus TCP/IP, and Uni-Telway communication protocols for broad device compatibility
• 1 GB SD card included for application storage and data logging
• Wide 0...60 °C operating range suited to demanding industrial environments
• Fieldbus card extension slot for additional network integration

Applications:

• Industrial HMI operator panels in manufacturing and process automation
• SCADA and process control systems requiring multi-protocol serial and Ethernet communication
• Hazardous area installations in oil, gas, and chemical industries
• Fieldbus gateway and multi-network integration projects

Compliant with IEC 61132-2, UL 508, CSA C22.2 No 142, ANSI/ISA 12-12-01, and Class I Division 2 CSA C22.2 No 213. Part of the Schneider Electric Harmony GTU range.
