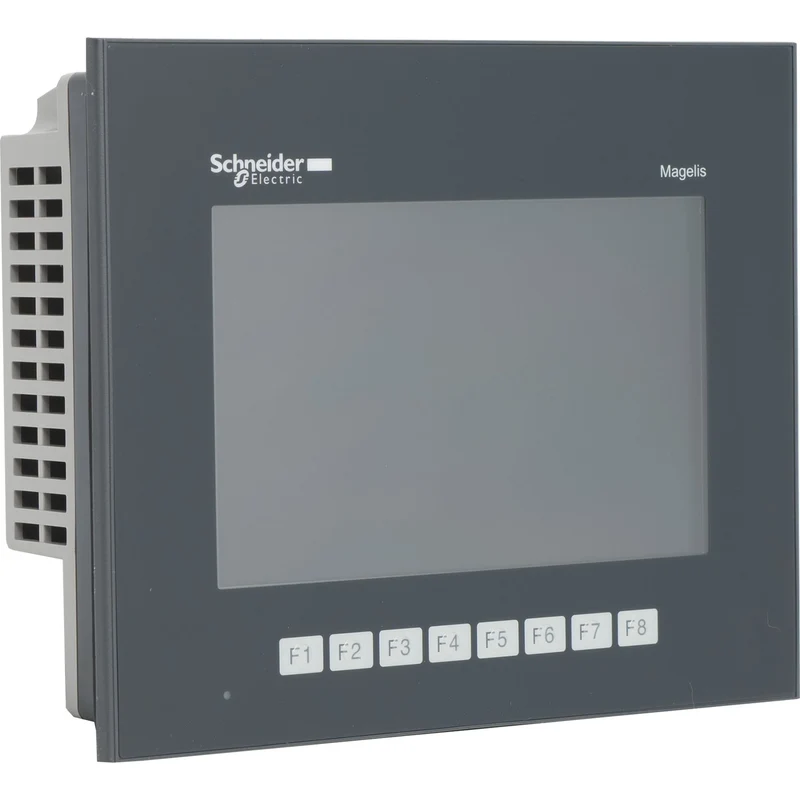

Schneider HMIGTO3510 Advanced touchscreen panel

The Schneider Electric HMIGTO3510 is an advanced touchscreen panel from the Harmony GTO series, featuring a 7.0 inch backlit colour TFT LCD display with 800 x 480 pixel WVGA resolution and 65536 colours. Designed for industrial HMI applications, it runs on an ARM926EJ-S processor with 96 MB Flash EPROM memory and is configured using Vijeo Designer software. The panel supports a wide range of communication protocols and connects to multiple PLC platforms from leading manufacturers.

Technical specifications:

• Commercial reference: HMIGTO3510
• Manufacturer: Schneider Electric
• EAN: 3595864150260
• Series / range: Harmony GTO
• Display size: 7 inch
• Display type: Backlit colour TFT LCD
• Display resolution: 800 x 480 pixels WVGA
• Display colours: 65536
• Touch panel: Resistive film, 1,000,000 cycles
• Processor: ARM926EJ-S
• Memory: 96 MB Flash EPROM, 128 kB internal RAM (SRAM)
• Data storage: SD card / SDHC card up to 32 GB
• Rated supply voltage: 24 V DC
• Supply voltage limits: 19.2...28.8 V
• Maximum power consumption: 12 W
• Backlight lifespan: 50,000 hours at 25 °C
• Serial port COM1: SUB-D 9, RS232C, 2400...115200 bps
• Serial port COM2: RJ45, RS485, 2400...115200 bps (187.5 kbps Siemens MPI compatible)
• Ethernet: RJ45, 10BASE-T/100BASE-TX, IEEE 802.3
• USB: 2.0 type A and mini B
• Mounting: Flush mounting, 4 screw clamps
• Width: 218 mm
• Height: 173 mm
• Depth: 60 mm
• Weight: 1.2 kg
• IP rating: IP20 rear panel / IP65 front panel (IEC 60529); NEMA 4X front panel
• Operating temperature: 0...50 °C
• Storage temperature: -20...60 °C
• Relative humidity: 10...90% without condensation
• Operating altitude: below 2000 m
• Standards: UL 508, IEC 61000-6-2, IEC 61131-2
• Certifications: CE, C-Tick, KCC, cULus, UKCA, UKEX
• Warranty: 18 months

Features and benefits:

• Wide protocol support including Modbus, Uni-TE, Modbus TCP, FIPWAY, and third-party protocols for Mitsubishi, Omron, Rockwell Allen-Bradley, and Siemens Simatic
• IP65-rated front panel provides protection against dust and water ingress in demanding industrial environments
• Lithium battery for internal RAM with 100-day autonomy and 10-year battery life ensures data retention during power outages
• Configurable brightness with 16 levels via touch panel or software for optimised visibility
• Multi-language character support including Chinese, Japanese, Korean, and ASCII
• Removable user-replaceable battery supports easy maintenance and extended product lifetime

Applications:

• Industrial machine control panels requiring a compact flush-mount HMI with multi-protocol PLC connectivity
• Process automation systems in manufacturing where IP65 front protection is required
• Building management and infrastructure control rooms using Modbus or Ethernet-based SCADA architectures
• Multi-vendor automation environments integrating Schneider, Siemens, Mitsubishi, Omron, or Rockwell PLCs

Compliant with UL 508, IEC 61000-6-2, and IEC 61131-2. Part of the Schneider Electric Harmony GTO range.

Also known as: Schneider HMIGTO3510, Schneider Electric HMIGTO3510, Harmony GTO touchscreen panel, Schneider 7 inch HMI panel.
