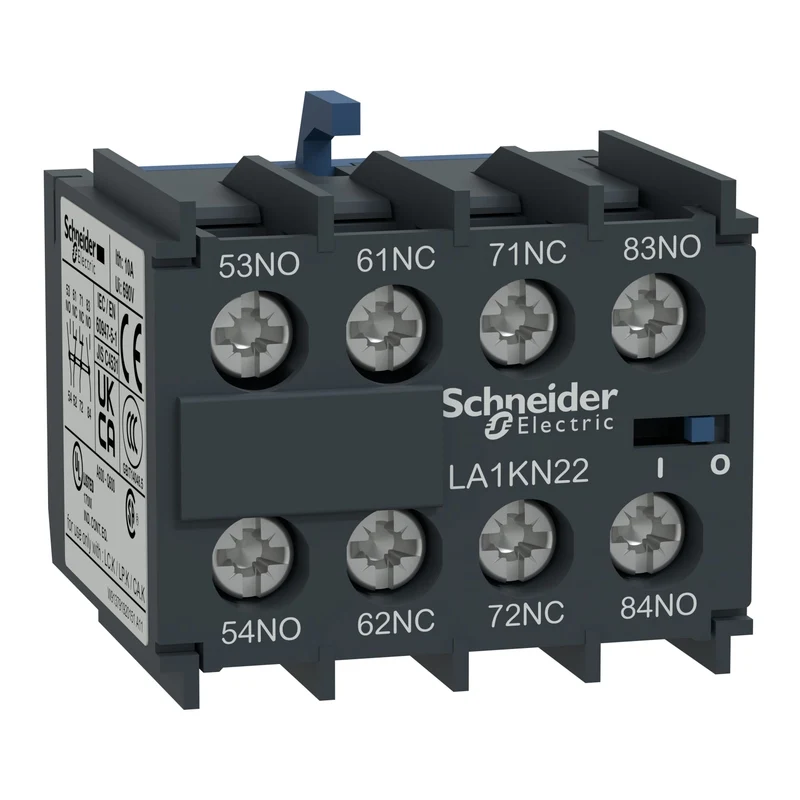

Schneider LA1KN22 Auxiliary contact block

The Schneider Electric LA1KN22 is an auxiliary contact block from the TeSys K range, featuring 2 normally open (NO) and 2 normally closed (NC) instantaneous contacts. It mounts on the front of TeSys K LC1K contactors and CA2K/CA3K control relays, extending their contact capacity for signalling and interlocking circuits. Rated at 690 V AC with a conventional free air thermal current of 10 A at 50°C, it suits a wide range of industrial control applications.

Technical specifications:

• Commercial reference: LA1KN22
• Manufacturer: Schneider Electric
• EAN: 3389110500110
• Series / range: TeSys K
• Product type: Auxiliary contact block
• Contact arrangement: 2 NO + 2 NC
• Contact operation: Instantaneous
• Mounting location: Front
• Compatible devices: TeSys K LC1K, CA2K, CA3K
• Rated operational voltage [Ue]: 690 V AC, 25-400 Hz
• Rated insulation voltage [Ui]: 690 V per IEC 60947-5-1
• Conventional thermal current [Ith]: 10 A at 50°C
• Connection type: Screw terminals, 0.34-4 mm²
• Dimensions (W x H x D): 38 x 30 x 35 mm
• Weight: 0.045 kg
• IP protection rating: IP20 per IEC 60529
• Operating temperature: -25...50°C
• Storage temperature: -50...80°C
• Standards: EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1
• Certifications: CE, UKCA, UL, CSA, CB Scheme, CCC

Features and benefits:

• Front-mounting design for direct attachment to TeSys K LC1K contactors and CA2K/CA3K control relays
• 2 NO + 2 NC instantaneous contacts provide flexible signalling and interlocking configurations
• Wide operating temperature range of -25 to 50°C for varied industrial environments
• Screw terminals accept 0.34-4 mm² flexible and rigid cables for straightforward panel wiring
• Multiple international certifications including CE, UKCA, UL, CSA, and CCC for global deployment

Applications:

• Motor control panels requiring additional auxiliary contacts for status signalling circuits
• Industrial automation systems using TeSys K LC1K contactors
• Machine building control panels with interlocking or feedback requirements
• Building automation and HVAC control panels using TeSys K CA2K or CA3K relays

Compliant with EN/IEC 60947-5-1, UL 60947-5-1, and CSA C22.2 No 60947-5-1. Part of the Schneider Electric TeSys K range.
