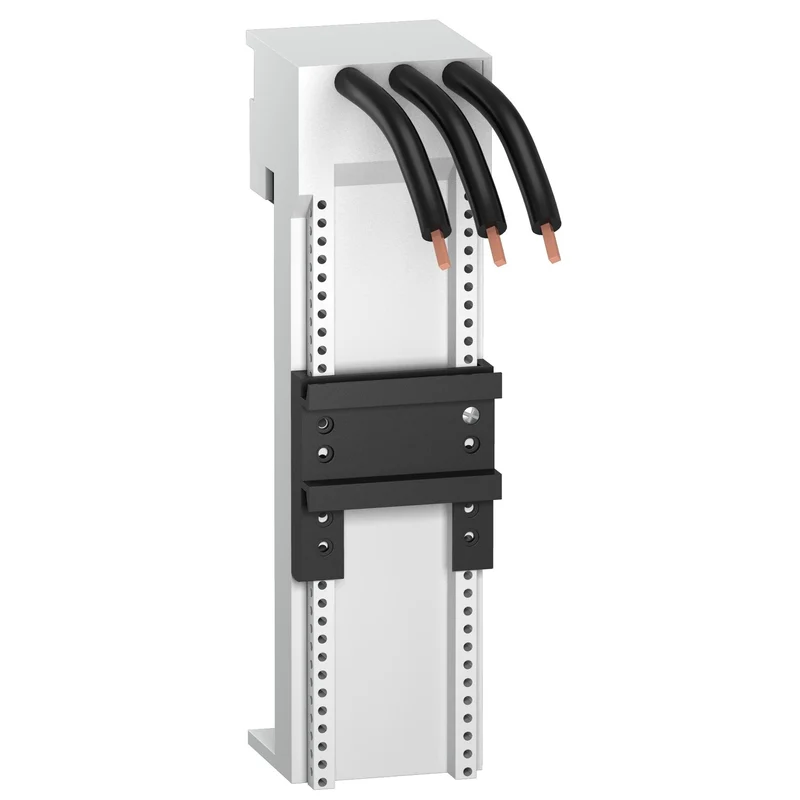

Schneider LA9ZA32624 TeSys Linergy Busbar Accessory

The Schneider Electric LA9ZA32624 is a 3-pole busbar mounting plate (adaptor) from the Linergy BZ range, designed to connect 63 A busbars to TeSys GV3P motor protection circuit breakers. It accommodates a single 3-pole connection with 60 mm busbar pitch spacing and fits directly into compatible enclosure and busbar systems.

Technical specifications:

• Commercial reference: LA9ZA32624
• Manufacturer: Schneider Electric
• EAN: 3606480100000
• Series / range: Linergy BZ
• Product type: Busbar system adapter / mounting plate
• Number of poles: 3P
• Permissible current: 63 A
• Rated insulation voltage (Ui): 690 V
• Cable cross-section: 10 mm² - AWG 8
• Busbar pitch: 60 mm
• Number of connections: 1
• Quantity per set: 4 pieces
• Dimensions (W x H x D): 54 x 200 x 63 mm
• Color: Grey
• IP protection rating: IP20 per IEC 60529
• Compatible products: GV3P
• Compatible enclosure ranges: PrismaSeT G, PrismaSeT P, PrismaSeT PH, PrismaSeT Pack, TeSys GV3, PanelSeT

Features and benefits:

• Direct mounting interface between 3-pole 63 A busbars and TeSys GV3P motor circuit breakers
• Rated insulation voltage of 690 V supports a wide range of industrial power distribution applications
• Compatible with multiple PrismaSeT and PanelSeT enclosure families for flexible panel design
• Supplied as a set of 4 units, reducing procurement effort for multi-feeder installations
• Halogen-free plastic parts in compliance with environmental standards
• IP20 protection rating per IEC 60529 for use in enclosed panel environments

Applications:

• Connecting motor protection circuit breakers (GV3P) directly to distribution busbars in industrial control panels
• Motor control centres (MCCs) using PrismaSeT or PanelSeT enclosure systems
• Industrial automation and machine control switchboards requiring busbar-fed motor starters
• Factory and process plant distribution panels where TeSys GV3P devices are busbar-mounted

Compliant with IEC 60529 (IP rating). Part of the Schneider Electric Linergy BZ range.

Also known as: Schneider LA9ZA32624, Schneider Electric LA9ZA32624, GV3P busbar adapter, TeSys busbar mounting plate.
