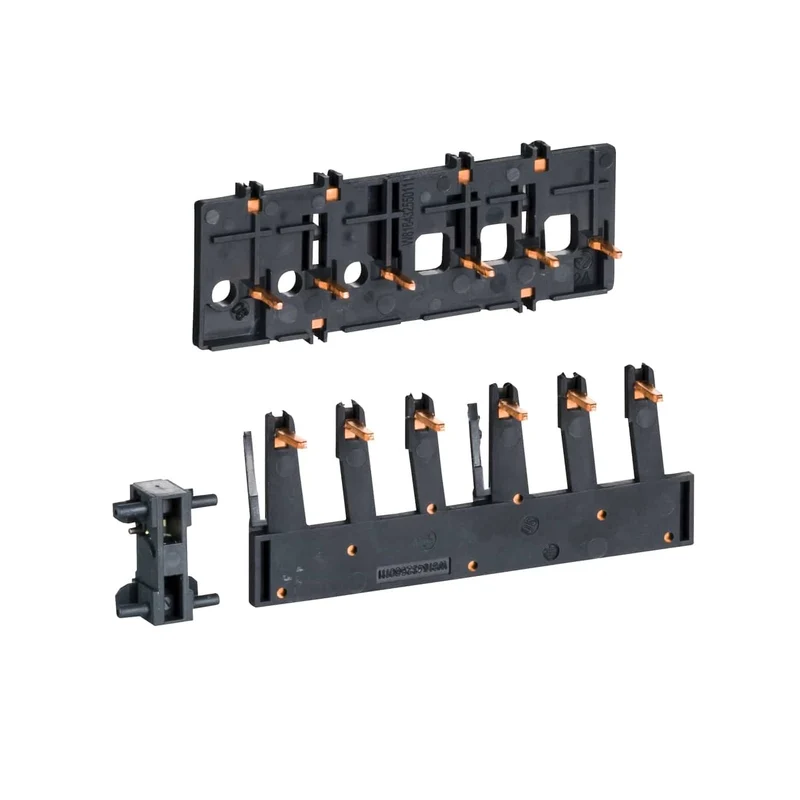

Schneider LAD9R1 TeSys Deca Mechanical Interlock LC1D

The Schneider Electric LAD9R1 is a 32A reversing contactor set from the TeSys Deca range, providing a complete assembly for configuring two contactors in a direction-reversal circuit. The set includes a mechanical interlock and a power terminal set, and is compatible with the full LC1D contactor family from LC1D09 to LC1D38. It is a 3-pole solution designed for pairing with TeSys D and TeSys Deca contactors.

Technical specifications:

• Commercial reference: LAD9R1
• Manufacturer: Schneider Electric
• EAN: 3389110393972
• Series / range: TeSys Deca / TeSys Linergy
• Product type: Reversing contactor set
• Number of poles: 3P
• Rated current: 32A
• Compatible contactor groups: TeSys D, TeSys Deca
• Compatible contactor references: LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
• Set composition: Mechanical interlock and power terminal set
• Product weight: 0.045 kg
• Warranty: 18 months

Features and benefits:

• Combines a mechanical interlock with a power terminal set in a single kit for a complete reversing assembly
• Broad compatibility spanning six LC1D contactor frame sizes from 9A to 38A
• 3-pole configuration supports three-phase motor control installations
• Lightweight at 45g, minimising added weight and space in the control panel
• Packaging uses recycled cardboard in line with Schneider Electric sustainability commitments

Applications:

• Three-phase motor reversal in industrial machinery and conveyor systems
• Motor control panels and motor control centres using TeSys D or TeSys Deca contactors
• Automated production lines requiring forward and reverse motor operation
• Pump and fan drives in building services and HVAC applications
• OEM machine builders standardising on the TeSys contactor platform

Part of the Schneider Electric TeSys Deca range, compatible with TeSys D contactors.

Also known as: Schneider LAD9R1, Schneider Electric LAD9R1, TeSys reversing contactor kit, LC1D reversing interlock set.
