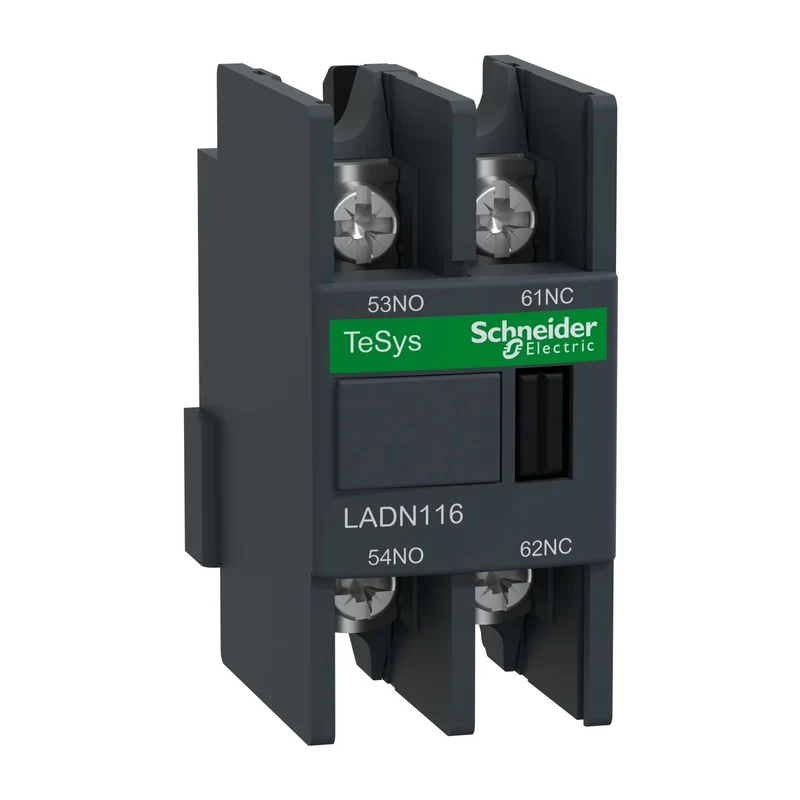

Schneider LADN116 Auxiliary contact block

The Schneider Electric LADN116 is an auxiliary contact block from the TeSys Deca range, designed for front mounting on TeSys D and TeSys Deca contactors. It provides 1NO+1NC instantaneous pole contact composition with a rated operational voltage of 690 V AC and is rated for 6 A at 120 V AC-15, making it suitable for control circuit signalling and interlocking applications.

Technical specifications:

• Commercial reference: LADN116
• Manufacturer: Schneider Electric
• EAN: 3389110820799
• Series / range: TeSys Deca
• Product type: Auxiliary contact block
• Pole contact composition: 1 NO + 1 NC
• Contacts operation: Instantaneous
• Mounting location: Front
• Rated operational voltage [Ue]: 690 V AC, 25...400 Hz
• Rated operational current [Ie]: 6 A at 120 V AC-15 / 1.04 A at 690 V AC-15 / 0.55 A at 125 V DC-13 / 0.1 A at 600 V DC-13
• Rated insulation voltage [Ui]: 690 V (IEC 60947-5-1) / 600 V (UL, CSA)
• Conventional free air thermal current [Ith]: 10 A at 60 °C
• Rated making capacity (Irms): 140 A AC / 250 A DC (IEC 60947-5-1)
• Minimum switching current: 5 mA
• Minimum switching voltage: 17 V
• Non-overlap time: 1.5 ms (energisation and de-energisation)
• Insulation resistance: greater than 10 MOhm
• Connection type: Lugs-ring terminals (external diameter: 8 mm)
• Tightening torque: 1.7 N.m (M3.5)
• Protection type: GG fuse 10 A
• Mechanical durability: 30 Mcycles
• Width: 26 mm / Height: 48 mm / Depth: 42 mm
• Weight: 33 g
• Colour: Dark grey
• IP protection rating: IP20 (IEC 60529)
• Operating temperature: -5...60 °C
• Storage temperature: -60...80 °C
• Operating altitude: 3000 m
• Standards: EN/IEC 60947-5-1, GB/T 14048.5, EN 50012, UL 60947-5-1, CSA C22.2 No 60947-5-1
• Certifications: CB Scheme, UL, CSA, CCC, EAC, UKCA

Features and benefits:

• 1NO+1NC instantaneous contacts enable simultaneous normally-open and normally-closed signalling from a single block
• Front mounting design allows easy addition to TeSys D and TeSys Deca contactors without replacing the base unit
• 1.5 ms non-overlap time between NC and NO contacts prevents false signals during switching transitions
• Wide compatibility across TeSys D CAD, LC1D, TeSys F LC1F, CR1F, and TeSys Deca ranges
• Rated for 30 million mechanical cycles, ensuring long service life in high-cycle applications
• Lugs-ring terminal connection with M3.5 screws provides secure, vibration-resistant wiring

Applications:

• Motor starter control circuits requiring auxiliary signalling and status feedback
• Industrial automation panels using TeSys D or TeSys Deca contactors for interlocking logic
• HVAC control systems where contactor position feedback is needed for building management integration
• Machine safety circuits requiring NC contact monitoring of contactor state
• PLC input modules receiving run/stop status signals from motor control centres

Compliant with EN/IEC 60947-5-1, EN 50012, UL 60947-5-1, and CSA C22.2 No 60947-5-1. Part of the Schneider Electric TeSys Deca range.

Also known as: Schneider LADN116, Schneider Electric LADN116, TeSys auxiliary contact block, contactor auxiliary contact 1NO+1NC.
