Schneider LADN22S Electric LADN22S TeSys Deca Auxiliary Contact Block 2NO+2NC

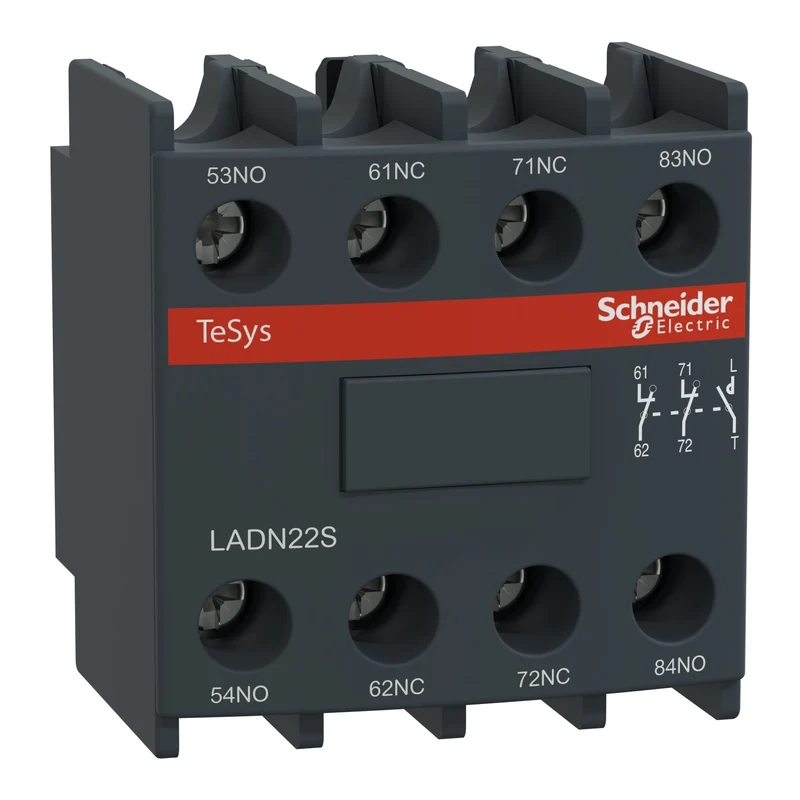

The Schneider Electric LADN22S is a 2NO+2NC front-mounting auxiliary contact block from the TeSys Deca range. Designed to expand signaling and interlocking capability on compatible TeSys D and TeSys Deca contactors, it delivers instantaneous contact operation at up to 690 V AC with a conventional thermal current of 10 A at 60°C. The distinctive red front face (RAL 3000) enables quick visual identification in control panel assemblies.

Technical specifications:

• Commercial reference: LADN22S
• Manufacturer: Schneider Electric
• EAN: 3606480733253
• Series / range: TeSys Deca
• Product type: Auxiliary contact block
• Contact arrangement: 2 NO + 2 NC
• Contacts operation: Instantaneous
• Mounting location: Front
• Rated operational voltage [Ue]: 690 V AC, 25...400 Hz
• Rated operational current [Ie]: 6 A at 120 V AC-15 / 1.04 A at 690 V AC-15 / 0.55 A at 125 V DC-13 / 0.1 A at 600 V DC-13
• Rated insulation voltage [Ui]: 690 V (IEC 60947-5-1) / 600 V (UL/CSA)
• Conventional thermal current [Ith]: 10 A at 60°C
• Rated making capacity (Irms): 140 A AC / 250 A DC (IEC 60947-5-1)
• Mechanical endurance: 30 million cycles
• Minimum switching current / voltage: 5 mA / 17 V
• Non-overlap time: 1.5 ms (opening and closing)
• Insulation resistance: >10 MOhm
• Connection type: Screw clamp terminals, 1-4 mm² (single or double cable, flexible or rigid)
• Tightening torque: 1.7 N.m
• Dimensions (WxHxD): 44 x 48 x 42 mm
• Weight: 0.05 kg
• Color: Red (RAL 3000)
• IP protection rating: IP20 (IEC 60529)
• Operating temperature: -5...60°C
• Storage temperature: -60...80°C
• Operating altitude: up to 3000 m
• Certifications: CB Scheme, UL, CSA, CCC, EA

Features and benefits:

• 2NO+2NC contact arrangement provides versatile signaling, feedback, and interlocking options in motor control circuits
• Front-mounting design installs directly onto TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, and TeSys Deca LC1D contactors
• Red front face (RAL 3000) enables instant visual identification of the auxiliary block in crowded control cabinets
• 30 million cycle mechanical endurance ensures long service life in high-frequency switching applications
• Screw clamp terminals accept 1-4 mm² flexible and rigid conductors, supporting single or double cable connections

Applications:

• Auxiliary signaling and run/stop feedback in industrial motor starter assemblies
• Interlocking between contactors in motor control centers (MCCs)
• HVAC and refrigeration control panels operating under IEC 60335-2-40
• Machine-building automation panels requiring contact position feedback on TeSys contactors

Compliant with EN/IEC 60947-5-1, EN 50012, UL 60947-5-1, CSA C22.2 No 60947-5-1, and GB/T 14048.5. Part of the Schneider Electric TeSys Deca range.

Also known as: Schneider LADN22S, Schneider Electric LADN22S, TeSys Deca auxiliary contact block 2NO+2NC.
