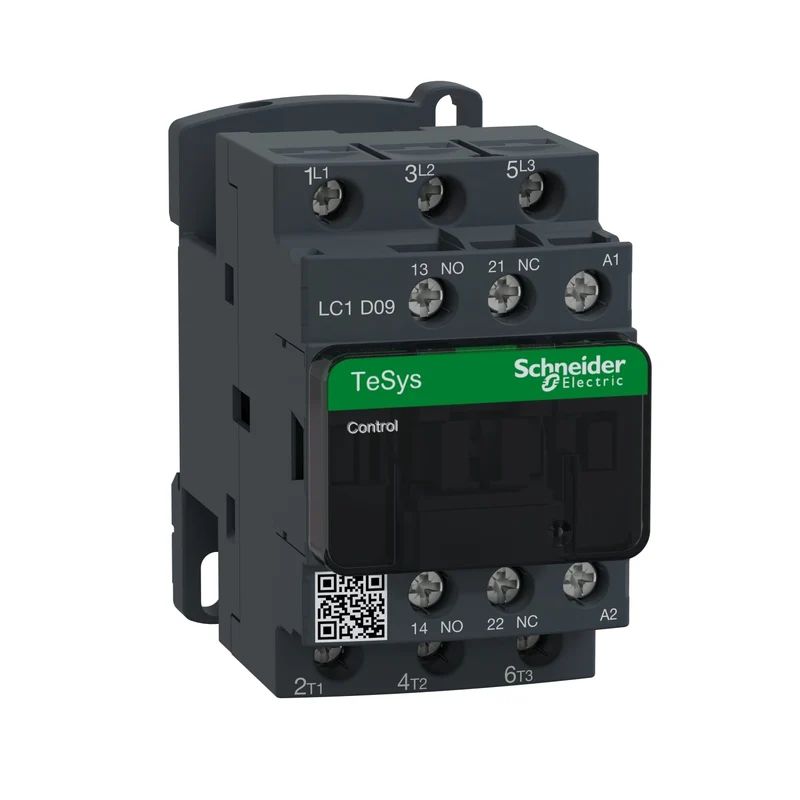

Schneider LC1D09B7 TeSys D Contactor 3P 3NO 9A 2.2kW 24V AC Coil

The Schneider Electric LC1D09B7 is a 3-pole contactor from the TeSys D range, designed for motor switching and industrial control applications up to 9 A at 440 V AC in AC-3 service.

• Reference: LC1D09B7
• Range: TeSys D
• Poles: 3P
• Contact configuration: 3 NO
• Rated operational current (Ie): 9 A (AC-3, < = 440 V, < 60 °C)
• Utilisation category: AC-4
• Motor power (AC-3): 2.2 kW at 220–230 V AC, 50/60 Hz
• Coil voltage: 24 V AC
• Rated voltage (Ue): < = 690 V AC, 25–400 Hz
