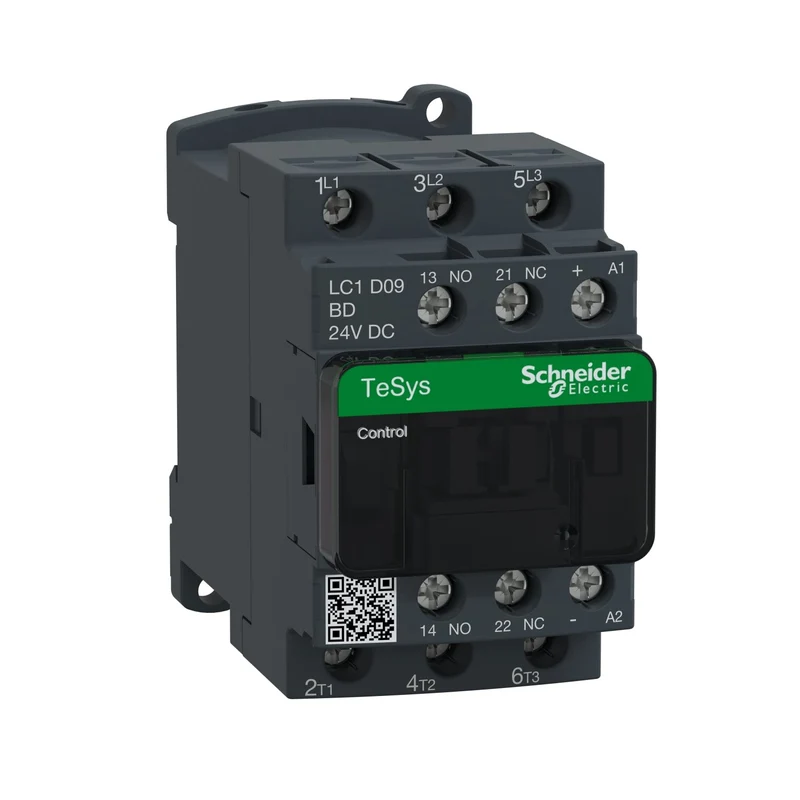

Schneider LC1D09BD TeSys D Contactor 3P 9A 2.2kW 24V DC Coil

The Schneider Electric LC1D09BD is a 3-pole contactor from the TeSys D range, designed for motor switching and industrial control applications with a rated voltage up to 690 V AC.

• Reference: LC1D09BD
• Range: TeSys D
• Poles: 3P
• Contact composition: 3 NO (main circuit)
• Rated operational current (Ie): 9 A at ≤440 V AC, AC-3 (< 60 °C)
• Rated voltage (Ue): ≤690 V AC, 25...400 Hz
• Motor power (AC-3): 2.2 kW at 220...230 V AC, 50/60 Hz
• Utilisation category: AC-4
• Coil voltage: 24 V DC
