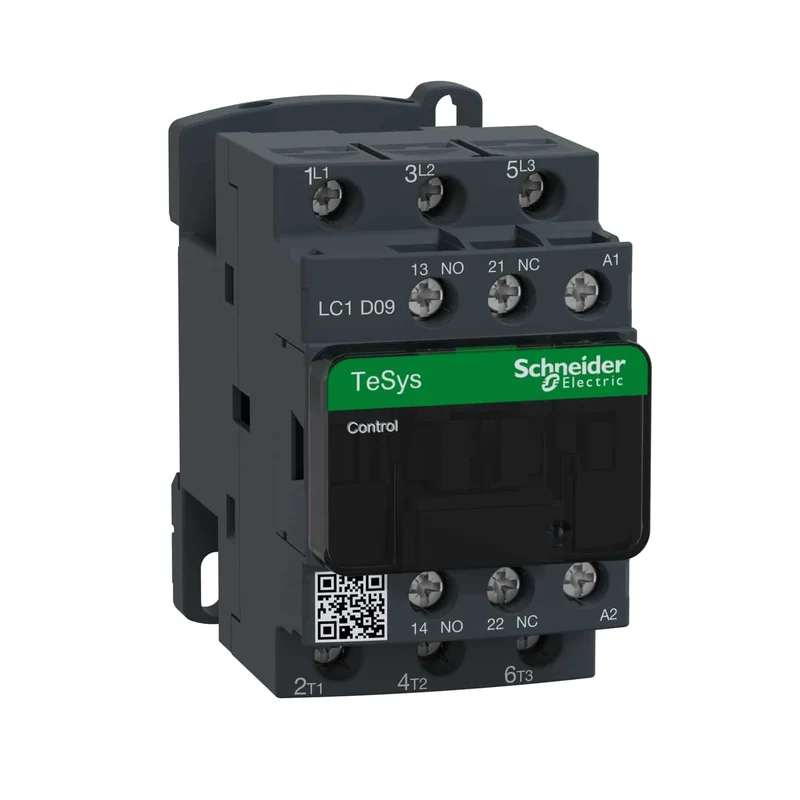

Schneider LC1D09M7 TeSys D Contactor 3P 9A 4kW 220V AC Coil

The Schneider Electric LC1D09M7 is a 3-pole contactor from the TeSys D range, designed for motor control applications. Rated at 9 A under utilisation category AC-3, it is suitable for starting and switching squirrel-cage motors at voltages up to 440 V.

• Reference: LC1D09M7
• Range: TeSys D
• Type: Contactor
• Poles: 3P (3 NO)
• Rated operational current (Ie): 9 A
• Utilisation category: AC-3
• Motor power: 4 kW at 415–440 V AC 50/60 Hz (AC-3); 4 kW at 380–400 V AC 50/60 Hz (AC-3e)
• Rated operational voltage (Ue): ≤440 V
• Coil voltage: 220 V AC
