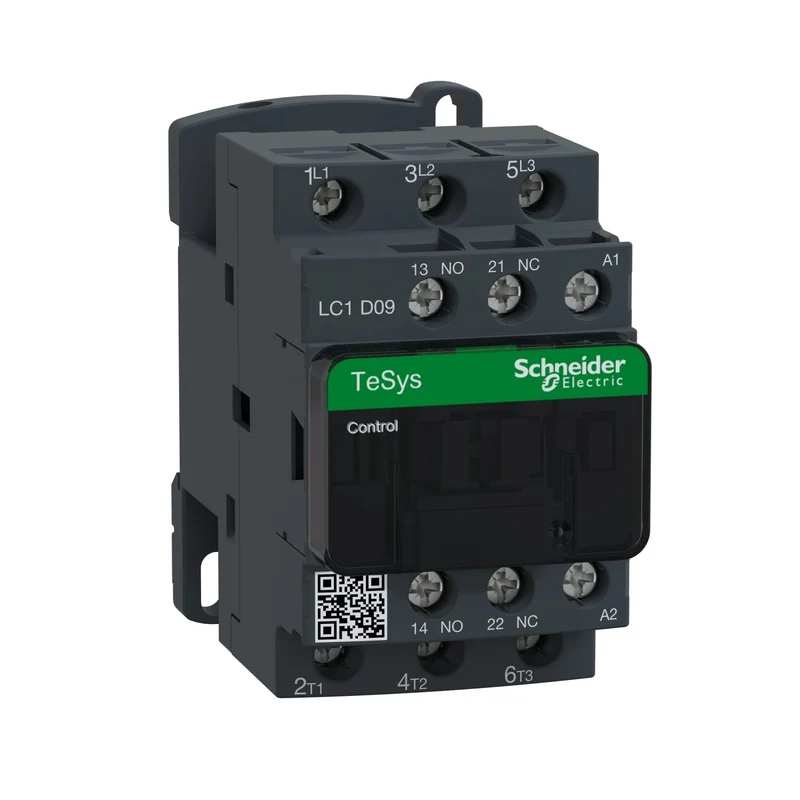

Schneider LC1D09P7 TeSys D Contactor 3P 9A 2.2kW 230V AC Coil

The Schneider Electric LC1D09P7 is a 3-pole TeSys D series contactor for motor control and industrial power switching applications.

• Reference: LC1D09P7
• Type: Contactor
• Poles: 3P
• Contact composition (main poles): 3 NO
• Rated operational current Ie: 9 A at ≤440 V AC, AC-3 (at < 60 °C)
• Utilisation category: AC-4
• Motor power (AC-3): 2.2 kW at 220–230 V AC 50/60 Hz
• Rated voltage (Ue): ≤690 V AC, 25–400 Hz
• Coil voltage: 230 V AC
