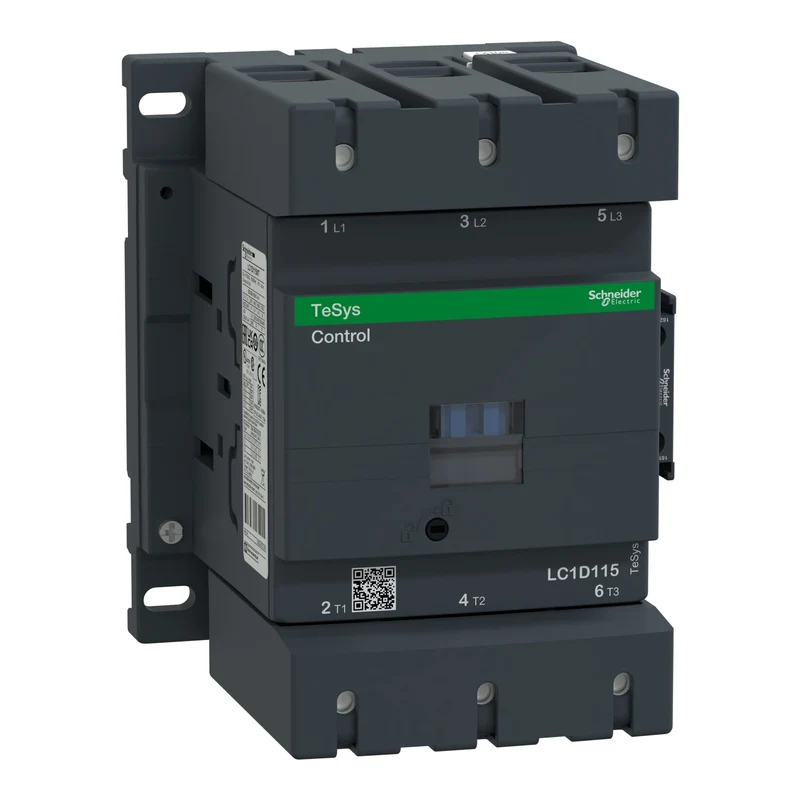

Schneider LC1D115B7 TeSys D Contactor 3P 3NO 115A 30kW 24V AC Coil

The LC1D115B7 is a 3-pole TeSys D series contactor from Schneider Electric, for AC motor control (AC-3) and resistive load switching (AC-1) in industrial power circuits.

• Reference: LC1D115B7
• Range: TeSys D
• Type: Contactor
• Poles: 3P
• Contact composition: 3 NO
• Rated current Ie (AC-3): 115 A at ≤ 440 V
• Rated current Ie (AC-1): 200 A at ≤ 440 V (at < 60 °C)
• Coil voltage: 24 V AC, 50/60 Hz
• Motor power (AC-3): 30 kW at 220...230 V AC
