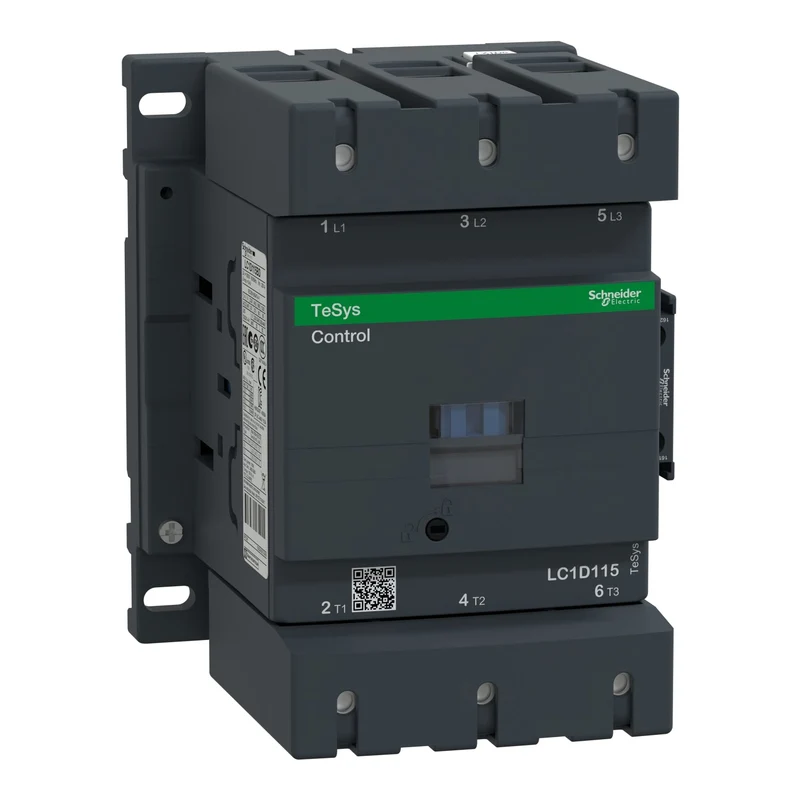

Schneider LC1D115BD TeSys D Contactor 3P 115A 30kW 24VDC Coil

The Schneider Electric LC1D115BD is a 3-pole contactor from the TeSys D range, designed for controlling AC motors in industrial power circuits.

• Reference: LC1D115BD
• Range: TeSys D
• Poles: 3P
• Contact configuration: 3 NO (normally open)
• Rated current Ie (AC-3, ≤440 V): 115 A
• Rated current Ie (AC-1, ≤440 V, < 60 °C): 200 A
• Utilisation category: AC-4
• Motor power (AC-3, 220–230 V AC 50/60 Hz): 30 kW
• Coil voltage: 24 V DC (standard coil)
