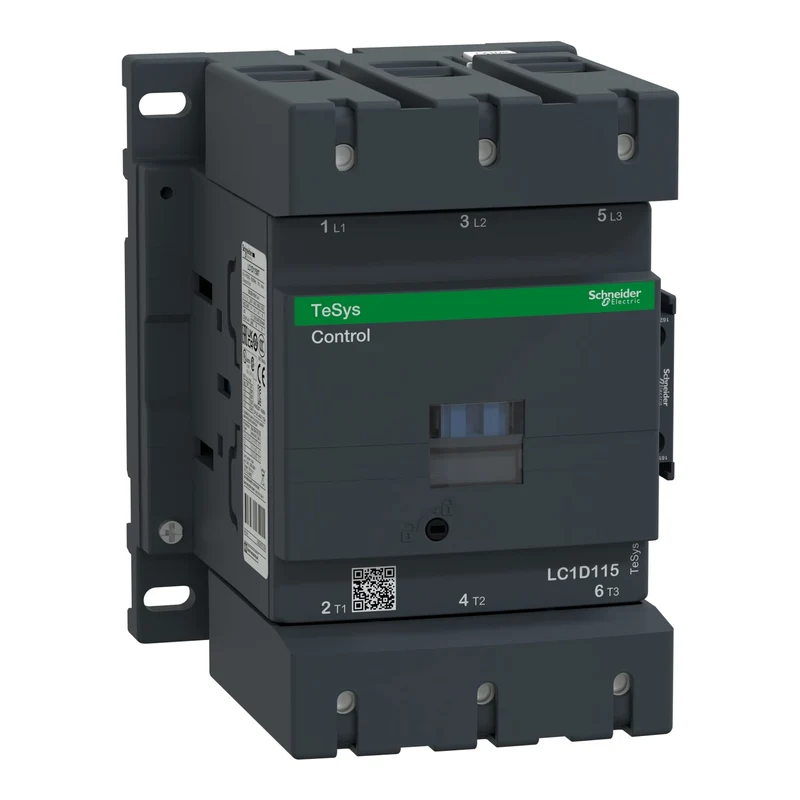

Schneider LC1D115P7 TeSys Contactor 3P 115A AC-3 30kW 230V AC Coil

The LC1D115P7 is a 3-pole TeSys D contactor from Schneider Electric, designed for motor switching and general-purpose load control in industrial installations.

• Reference: LC1D115P7
• Range: TeSys D
• Model: LC1D
• Type: Contactor
• Poles: 3P
• Contact composition: 3 NO (main poles)
• Rated current Ie (AC-3): 115 A at ≤ 440 V
• Rated current Ie (AC-1): 200 A at ≤ 440 V, below 60 °C
• Rated voltage Ue: ≤ 1000 V AC, 25–400 Hz
• Motor power (AC-3): 30 kW at 220–230 V AC 50/60 Hz
• Coil voltage: 230 V AC 50/60 Hz
