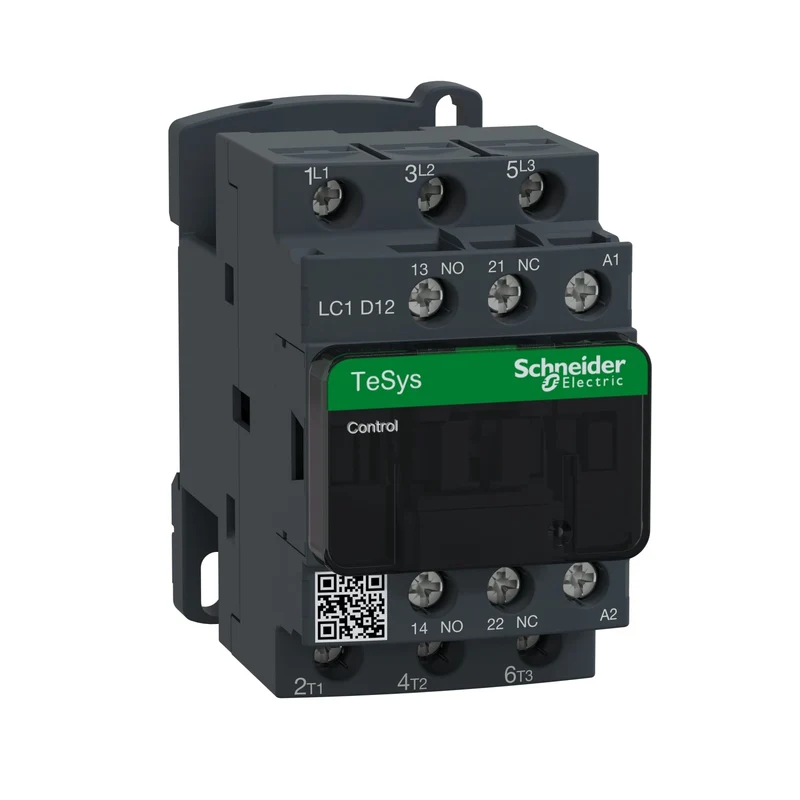

Schneider LC1D12B7 TeSys D Contactor 3P 12A 3kW 24V AC Coil

The Schneider Electric LC1D12B7 is a 3-pole TeSys D contactor rated for AC-3 duty, suitable for the direct-on-line starting and switching of squirrel-cage motors in industrial power circuits.

• Reference: LC1D12B7
• Range: TeSys D
• Type: Contactor, 3-pole
• Contact configuration: 3 NO (power poles)
• Rated operational current Ie (AC-3, ≤440 V): 12 A
• Rated operational current Ie (AC-1, ≤440 V, below 60 °C): 25 A
• Coil voltage: 24 V AC
• Motor power (AC-3, 220–230 V AC, 50/60 Hz): 3 kW
• Rated voltage Ue (main circuit): ≤690 V AC, 25–400 Hz
