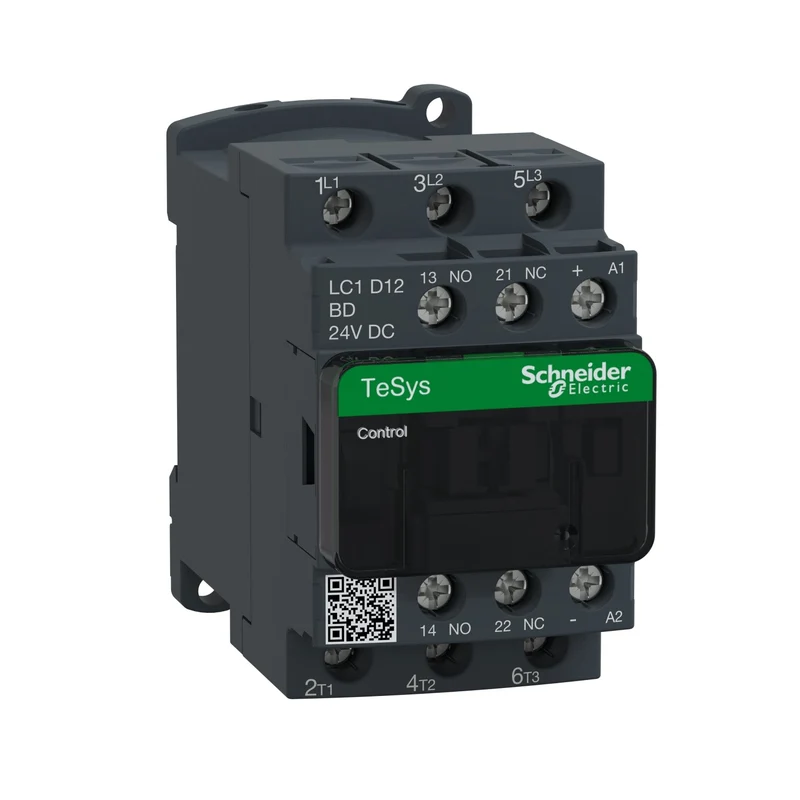

Schneider LC1D12BD TeSys D Contactor 3P 12A 3kW 24V DC Coil

The Schneider Electric LC1D12BD is a TeSys D series 3-pole contactor rated at 12 A (AC-3, ≤440 V), designed for switching and controlling three-phase inductive and motor loads across a wide supply voltage range.

• Reference: LC1D12BD
• Range: TeSys D
• Type: 3-pole contactor (3P, 3 NO)
• Rated current Ie at AC-3 (≤ 440 V): 12 A
• Rated current Ie at AC-1 (≤ 440 V, < 60 °C): 25 A
• Utilisation categories: AC-1, AC-3
• Coil voltage: 24 V DC
• Motor power at AC-3 (220–230 V AC, 50/60 Hz): 3 kW
• Rated voltage (Ue): ≤ 690 V AC, 25–400 Hz
