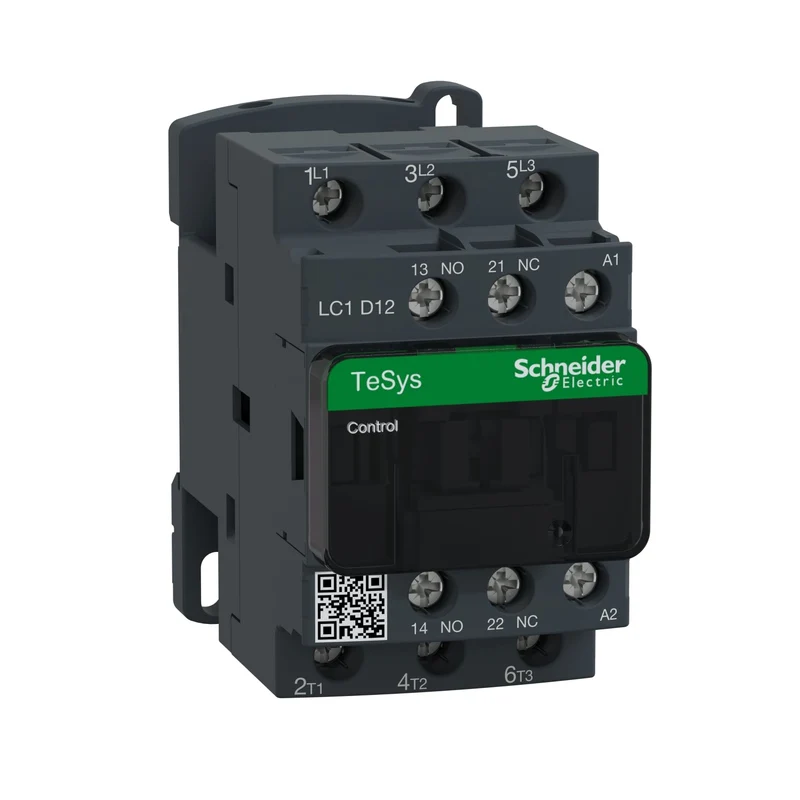

Schneider LC1D12P7 TeSys D Contactor 3P 12A 3kW 230V AC Coil

The Schneider Electric LC1D12P7 is a 3-pole contactor from the TeSys D range, designed for motor switching in AC-3 duty. It accepts a 230 V AC control coil and is suited for direct-on-line motor starters and industrial switching applications.

• Reference: LC1D12P7
• Type: 3-pole contactor
• Contact composition: 3 NO (main poles)
• Rated current Ie (AC-3): 12 A at ≤ 440 V AC
• Rated current Ie (AC-1): 25 A at ≤ 440 V AC (< 60 °C)
• Utilisation category: AC-3
• Motor power (AC-3, 220–230 V AC, 50/60 Hz): 3 kW
• Coil voltage: 230 V AC
• Rated voltage Ue (main circuit): ≤ 690 V AC, 25–400 Hz
