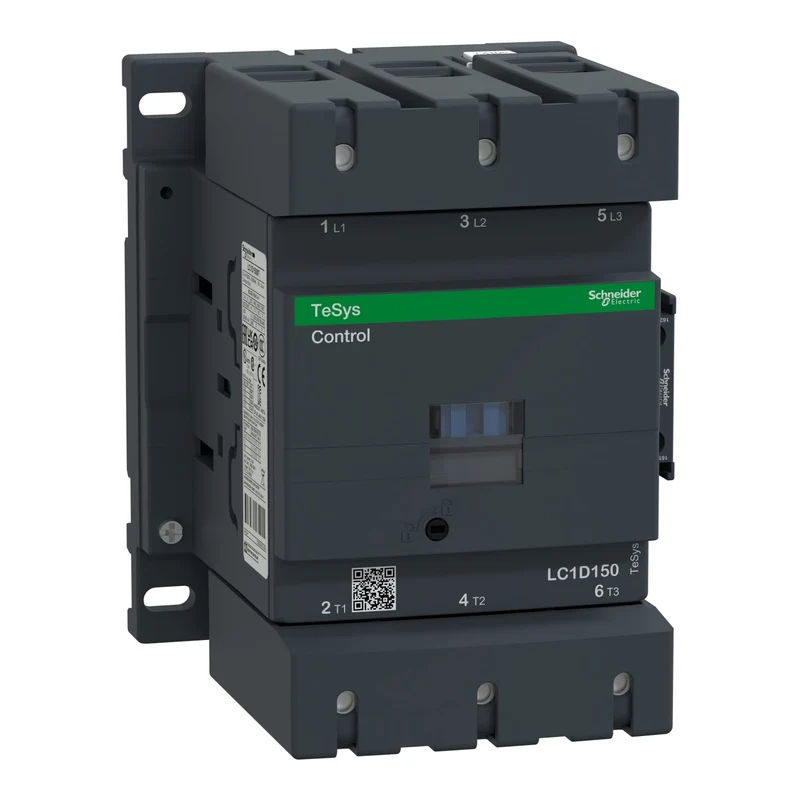

Schneider LC1D150B7 TeSys D Contactor 3P 3NO 150A 40kW 24V AC Coil

The Schneider Electric LC1D150B7 is a 3-pole AC contactor from the TeSys D range, designed for controlling three-phase induction motors and resistive loads in industrial power circuits.

• Reference: LC1D150B7
• Range: TeSys D
• Model: LC1D
• Type: Contactor
• Poles: 3P
• Contact configuration: 3 NO (main circuit)
• Rated current Ie at AC-3: 150 A at ≤440 V
• Rated current Ie at AC-1: 200 A (at < 60 °C) at ≤440 V AC
• Utilisation category: AC-3
• Coil voltage: 24 V AC 50/60 Hz
• Motor power at AC-3: 40 kW at 220...230 V AC 50/60 Hz
• Rated voltage (Ue): ≤1000 V AC 25...400 Hz
