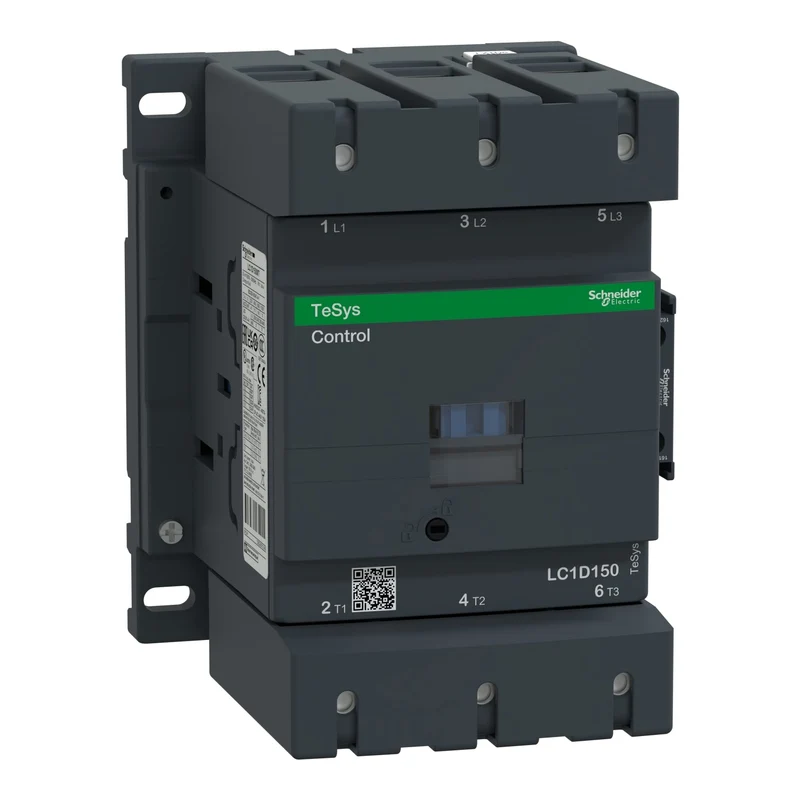

Schneider LC1D150M7 TeSys D Contactor 3P 3NO 150A 80kW 220V AC Coil

The LC1D150M7 is a 3-pole contactor from the Schneider Electric TeSys D range, rated at 150 A for AC-3 motor control applications up to 440 V AC, fitted with a 220 V AC 50/60 Hz coil.

• Reference: LC1D150M7
• Range: TeSys D
• Model: LC1D
• Type: Contactor
• Poles: 3P (3 NO)
• Utilisation category: AC-3 (motor control)
• Rated current Ie (AC-3): 150 A
• Coil voltage: 220 V AC, 50/60 Hz
• Motor power: 80 kW at 415–440 V AC (AC-3); 40 kW at 220–230 V AC (AC-3e)
