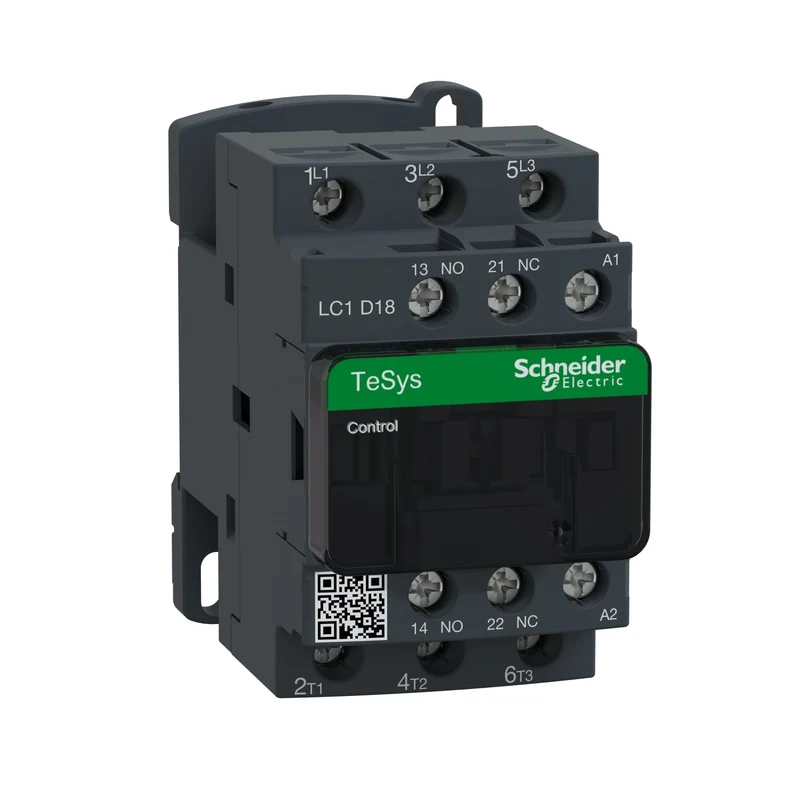

Schneider LC1D18B7 TeSys LC1D Contactor 3P 3NO 18A 4kW 24V AC Coil

The Schneider Electric LC1D18B7 is a 3-pole contactor from the TeSys D series, rated at 18 A (AC-3, ≤440 V AC) with a 24 V AC coil, designed for switching three-phase motors and AC loads.

• Reference: LC1D18B7
• Range: TeSys D
• Poles: 3P
• Contact configuration: 3 NO (power circuit)
• Rated current Ie: 18 A at AC-3, ≤440 V AC (at < 60 °C)
• Utilisation category: AC-1
• Coil voltage: 24 V AC
• Motor power (AC-3): 4 kW at 220...230 V AC, 50/60 Hz
• Rated voltage (Ue): ≤690 V AC, 25...400 Hz
