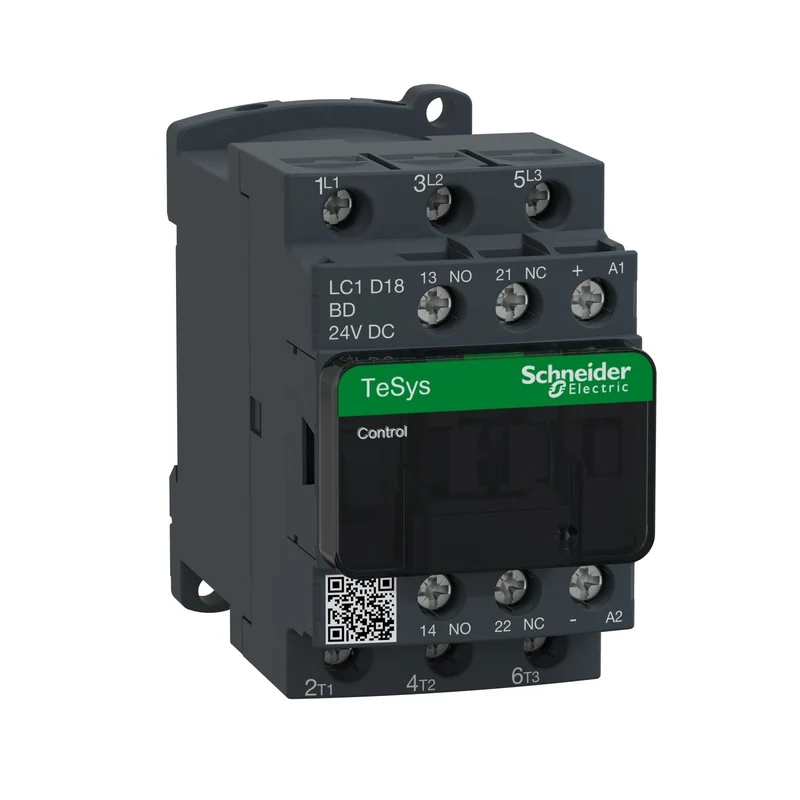

Schneider LC1D18BD TeSys D Contactor 3P 3NO 18A 4kW 24V DC Coil

The Schneider Electric LC1D18BD is a 3-pole TeSys D series contactor rated at 18 A (AC-3) for the switching and control of three-phase induction motors and resistive loads in industrial installations.

• Reference: LC1D18BD
• Type: Contactor, TeSys D series
• Poles: 3P
• Contact composition: 3 NO (main poles)
• Rated current Ie: 18 A at ≤ 440 V AC (AC-3)
• Utilisation category: AC-4
• Rated voltage (Ue): ≤ 690 V AC, 25–400 Hz
• Coil voltage: 24 V DC
• Motor power (AC-3): 4 kW at 220–230 V AC 50/60 Hz
