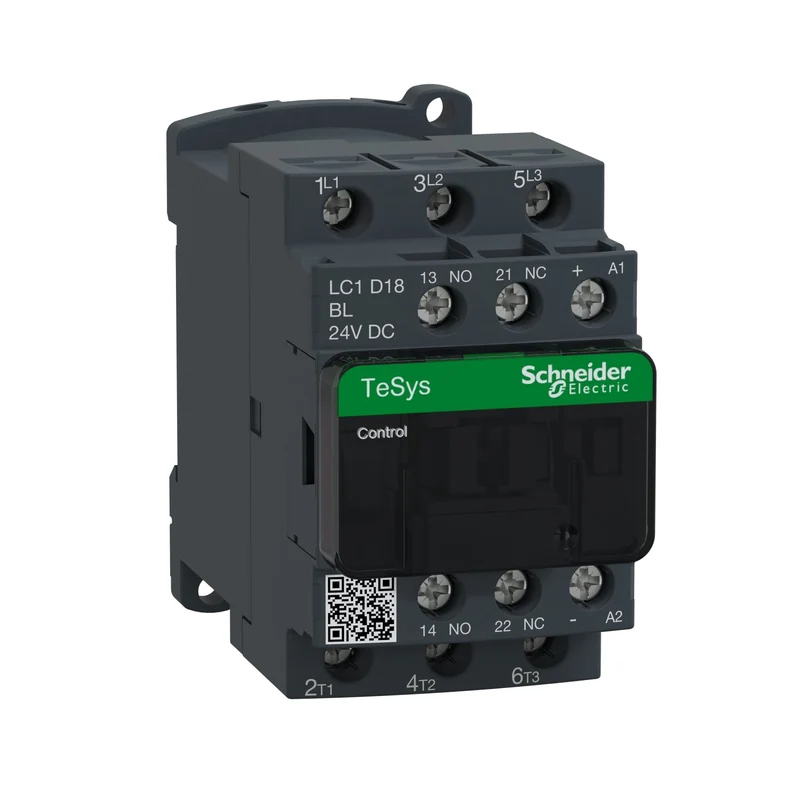

Schneider LC1D18BL TeSys D Contactor 3P 18A 4kW 24V DC Coil

The Schneider Electric LC1D18BL is a 3-pole contactor from the TeSys D range, designed for switching and controlling AC motors and resistive loads in industrial and commercial installations.

• Reference: LC1D18BL
• Range: TeSys D
• Type: Contactor
• Poles: 3P (3 NO power poles)
• Rated operational current (Ie): 18 A at ≤440 V AC (AC-3, main circuit)
• Rated voltage (Ue): ≤690 V AC, 25–400 Hz (main circuit)
• Utilisation category: AC-1
• Motor power (AC-3): 4 kW at 220–230 V AC, 50/60 Hz
• Coil voltage: 24 V DC
