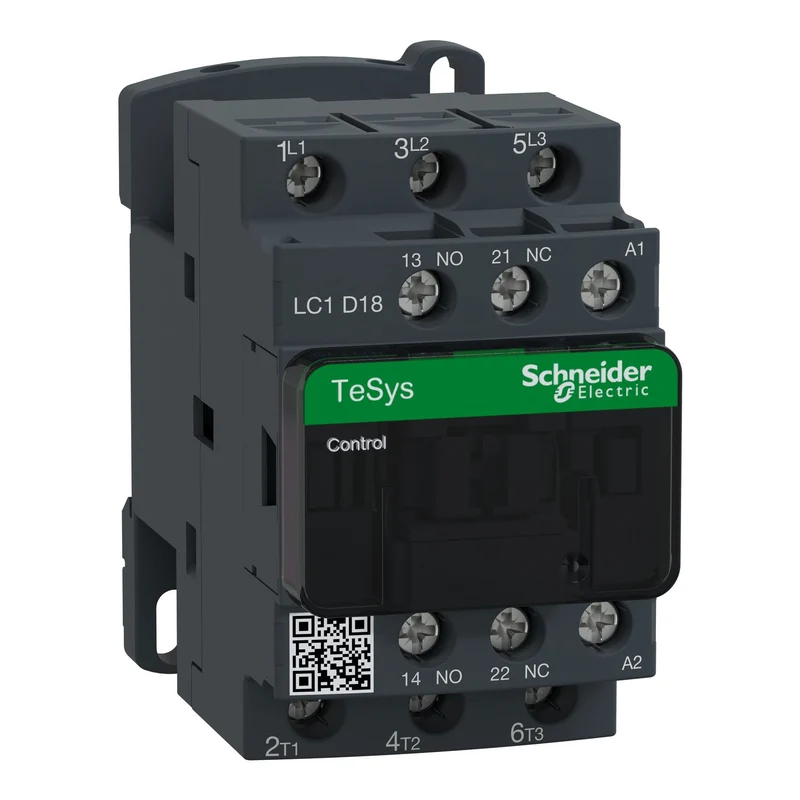

Schneider LC1D18M7 TeSys D Contactor 3P 18A 4kW 220V AC Coil

The Schneider Electric LC1D18M7 is a 3-pole contactor from the TeSys D range, designed for switching and controlling three-phase motors and industrial loads up to 690 V AC.

• Reference: LC1D18M7
• Range: TeSys D
• Model: LC1D
• Type: Contactor
• Poles: 3P
• Contact composition: 3 NO (main poles)
• Rated operational current (Ie): 18 A at ≤ 440 V AC, AC-3 (< 60 ° C)
• Rated voltage (Ue): ≤ 690 V AC, 25...400 Hz (main circuit)
• Motor power (AC-3): 4 kW at 220...230 V AC 50/60 Hz
• Utilisation category: AC-1, AC-3
• Coil voltage: 220 V AC
