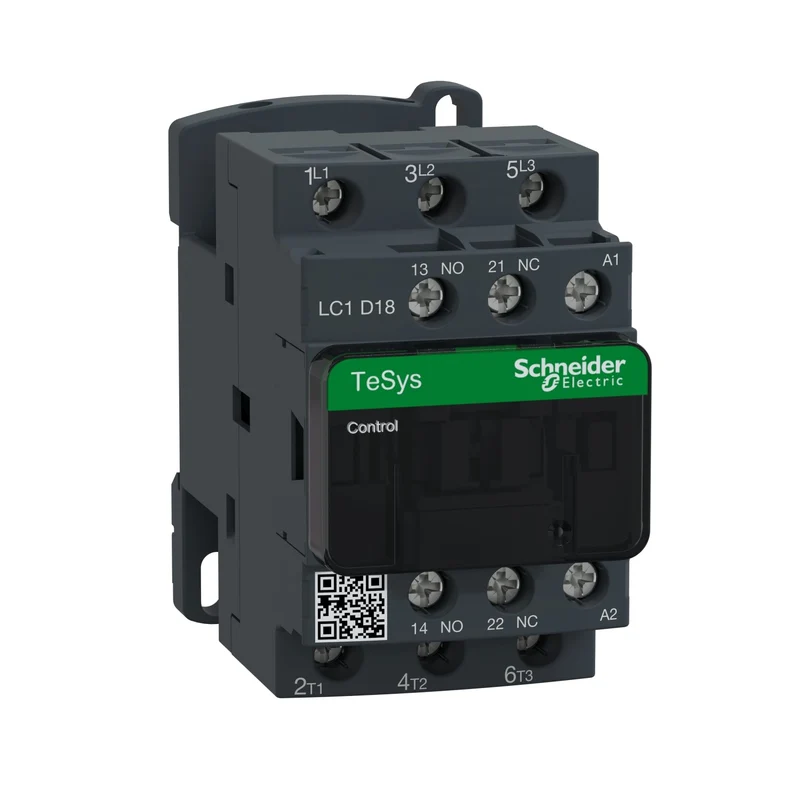

Schneider LC1D18P7 TeSys D Contactor 3P 18A 4kW 230V AC Coil

The Schneider Electric LC1D18P7 is a 3-pole AC contactor from the TeSys D range, rated for motor and resistive load switching in industrial installations.

• Reference: LC1D18P7
• Range: TeSys D
• Poles: 3P
• Contact configuration: 3 NO
• Rated current Ie (AC-3): 18 A at ≤440 V AC, < 60 °C
• Utilisation category: AC-3
• Rated voltage (Ue): ≤690 V AC, 25–400 Hz
• Coil voltage: 230 V AC
• Motor power (AC-3): 4 kW at 220–230 V AC, 50/60 Hz
