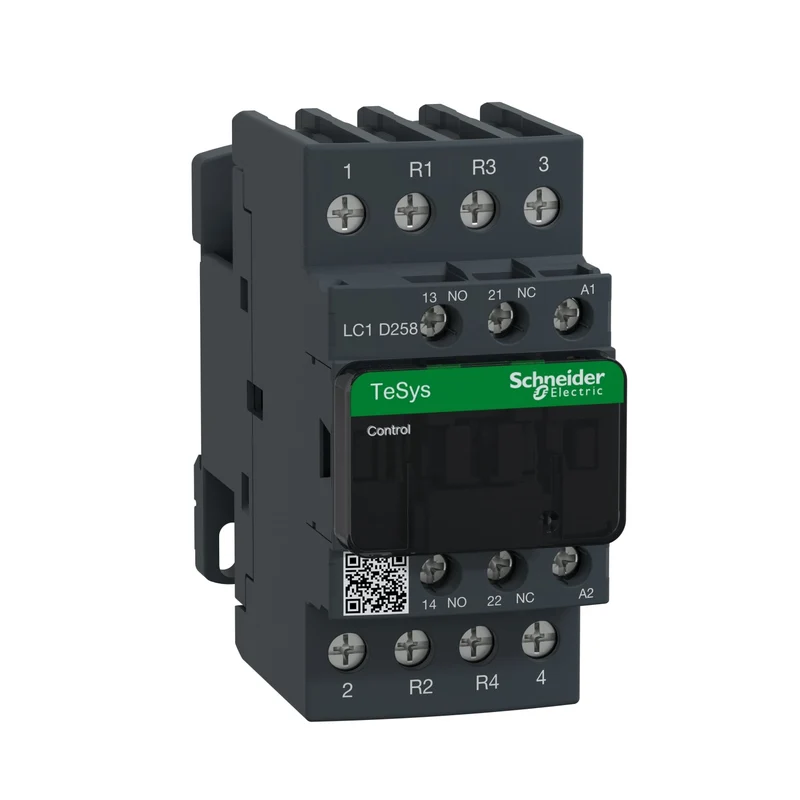

Schneider LC1D258P7 TeSys Contactor 4P 2NO+2NC 40A 230V AC Coil

The Schneider Electric LC1D258P7 is a 4-pole contactor from the TeSys D range, designed for switching resistive and slightly inductive loads in AC-1 applications. With a main-pole contact composition of 2 normally open and 2 normally closed contacts, it is suited to industrial control and power distribution circuits controlled by a 230 V AC coil.

• Reference: LC1D258P7
• Range: TeSys D
• Type: Contactor
• Poles: 4P
• Contact composition (main poles): 2 NO + 2 NC
• Rated operational current Ie (AC-1, ≤440 V AC): 40 A at < 60 °C
• Rated voltage Ue (main circuit): ≤690 V AC, 25–400 Hz
• Utilisation category: AC-1
• Coil voltage: 230 V AC
