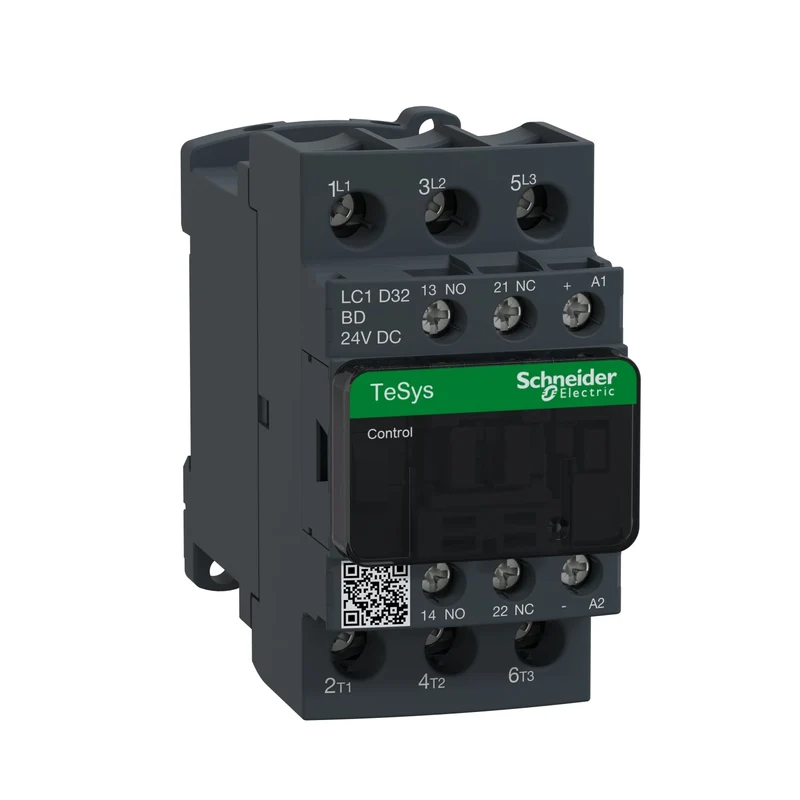

Schneider LC1D32BD TeSys D Contactor 3P 3NO 32A 7.5kW 24VDC Coil

The Schneider Electric LC1D32BD is a 3-pole TeSys D series contactor rated at 32 A (AC-3) with a 24 V DC coil, designed for switching and controlling three-phase induction motors in industrial installations.

• Reference: LC1D32BD
• Range: TeSys D
• Number of poles: 3P
• Contact composition: 3 NO (main circuit)
• Rated current (Ie): 32 A at ≤ 440 V AC (AC-3, < 60 °C)
• Rated voltage (Ue): ≤ 690 V AC, 25–400 Hz (main circuit)
• Utilisation category: AC-3
• Motor power (AC-3): 7.5 kW at 220–230 V AC 50/60 Hz
• Coil voltage: 24 V DC
