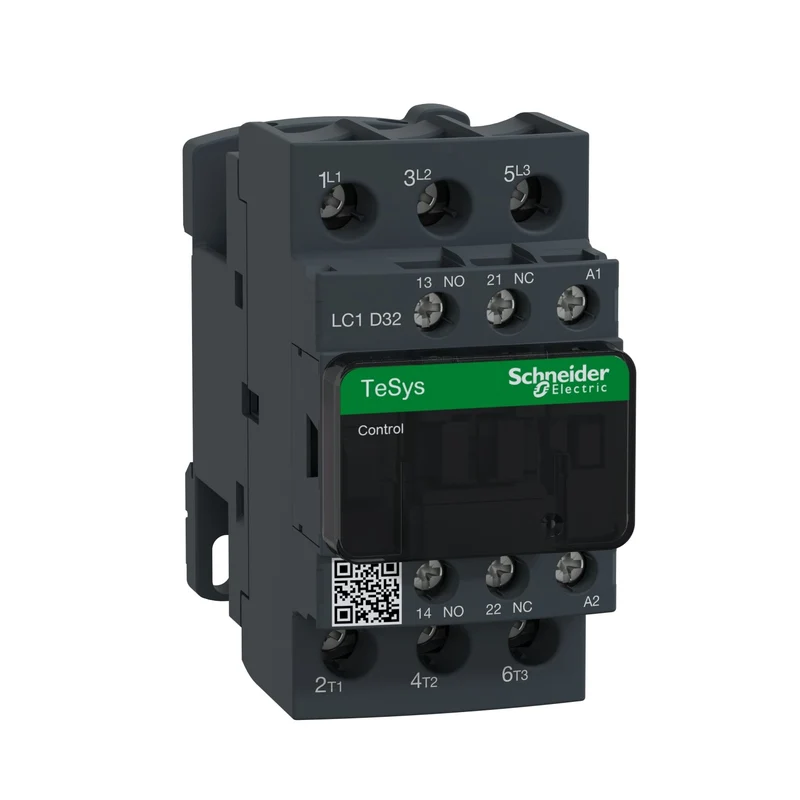

Schneider LC1D32P7 TeSys D Contactor 3P 3NO 32A 7.5kW 230V AC Coil

The Schneider Electric LC1D32P7 is a 3-pole AC contactor from the TeSys D range, designed for switching three-phase motor loads and resistive circuits in industrial power distribution installations.

• Reference: LC1D32P7
• Range: TeSys D
• Type: Contactor
• Poles: 3P (3 normally open main contacts)
• Rated operational current (Ie): 32 A at AC-3, ≤440 V AC (< 60 °C)
• Utilisation category: AC-3
• Motor power (AC-3): 7.5 kW at 220–230 V AC 50/60 Hz
• Coil voltage: 230 V AC 50/60 Hz
• Rated voltage (Ue): ≤690 V AC, 25–400 Hz
