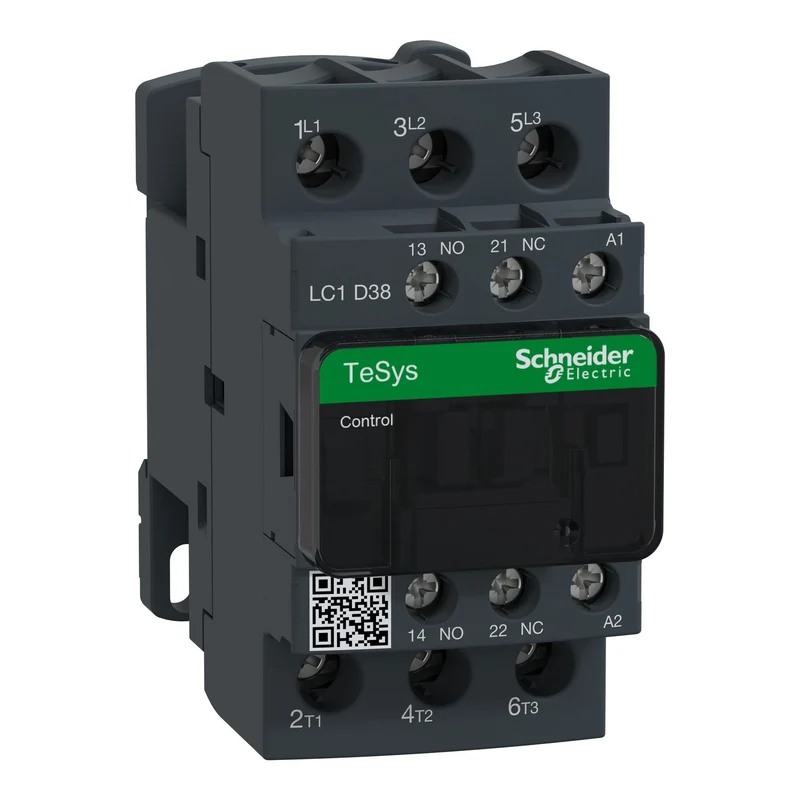

Schneider LC1D38F7 TeSys D Contactor 3P 38A 110V AC Coil

The Schneider Electric LC1D38F7 is a 3-pole contactor from the TeSys D range, suited to switching and controlling motors and resistive loads at up to 690 V AC in industrial control panels.

• Reference: LC1D38F7
• Range: TeSys D
• Poles: 3P
• Contact composition: 3 NO (main poles)
• Rated current Ie (AC-3, ≤440 V): 38 A
• Utilisation categories: AC-3, AC-4
• Motor power (AC-4, 500 V AC): 18.5 kW
• Coil voltage: 110 V AC, 50/60 Hz
• Rated voltage Ue (main circuit): ≤690 V AC, 25–400 Hz
