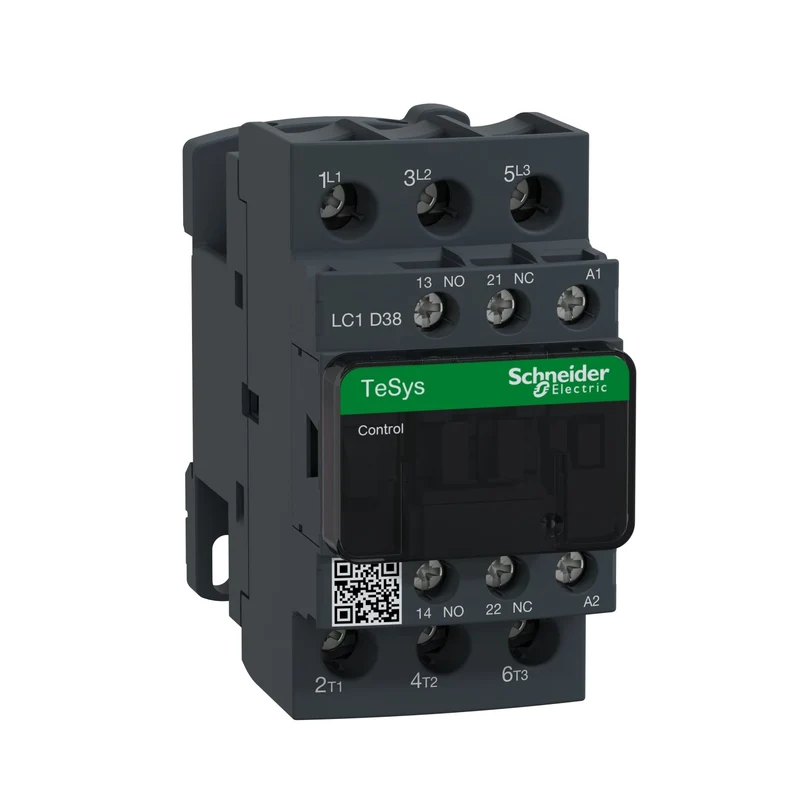

Schneider LC1D38P7 TeSys D Contactor 3P 3NO 38A 18.5kW 230V AC Coil

The Schneider Electric LC1D38P7 is a 3-pole contactor from the TeSys D range, designed for switching AC motor circuits and inductive loads in industrial control installations.

• Reference: LC1D38P7
• Range: TeSys D
• Poles and contacts: 3P (3 NO)
• Rated operational current Ie (AC-3, ≤ 440 V): 38 A
• Rated operational current Ie (AC-1, ≤ 440 V, < 60 °C): 50 A
• Motor power (AC-3, 500 V AC 50/60 Hz): 18.5 kW
• Coil voltage: 230 V AC, 50/60 Hz
• Rated voltage (Ue): ≤ 690 V AC, 25–400 Hz
• Utilisation category: AC-4
