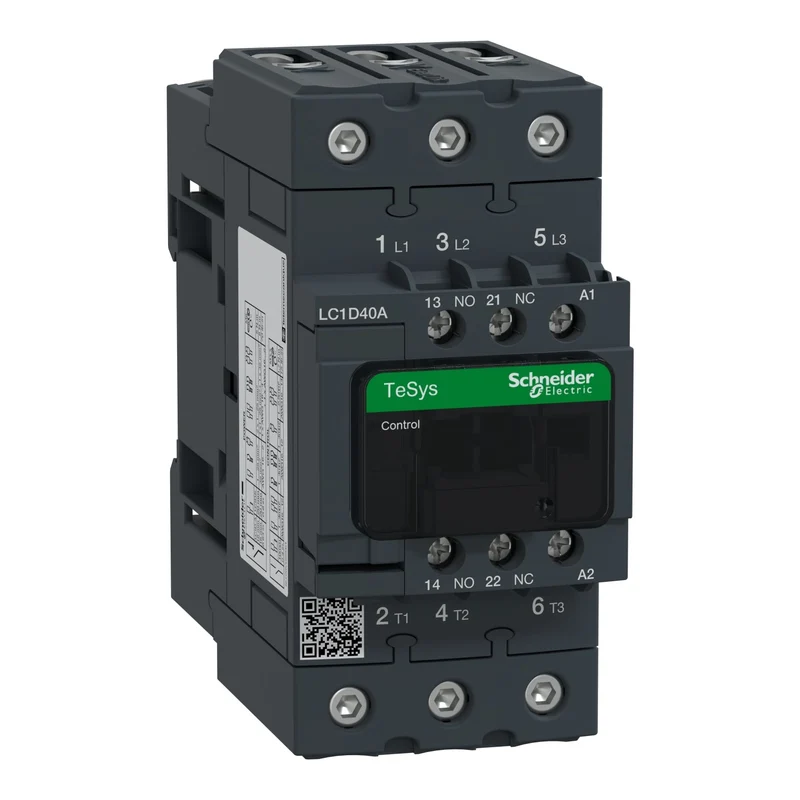

Schneider LC1D40AB7 TeSys D Contactor 3P 3NO 40A 18.5kW 24V AC Coil

The Schneider Electric LC1D40AB7 is a 3-pole TeSys D contactor rated for motor switching in industrial power circuits. With a 24 V AC coil and an AC-3 rated current of 40 A at up to 440 V, it is suited to motor control applications requiring reliable performance across a wide supply frequency range.

• Reference: LC1D40AB7
• Range: TeSys D
• Poles: 3P
• Contact composition: 3 NO
• Rated current Ie (AC-3): 40 A at ≤ 440 V AC
• Utilisation category: AC-4
• Coil voltage: 24 V AC, 50/60 Hz
• Motor power (AC-3): 18.5 kW at 380–400 V AC, 50/60 Hz
• Rated voltage (Ue): ≤ 690 V AC, 25–400 Hz
