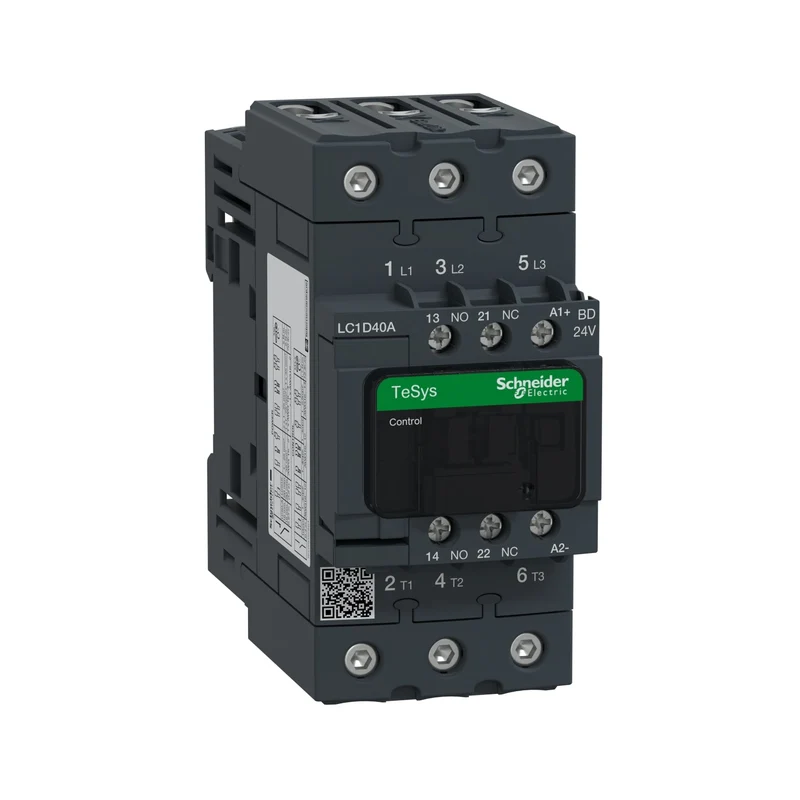

Schneider LC1D40ABD TeSys D Contactor 3P 40A 18.5kW 24V DC Coil

The Schneider Electric LC1D40ABD is a 3-pole TeSys D series contactor designed for AC motor control and general industrial switching, covering AC-3 and AC-4 utilisation categories.

• Reference: LC1D40ABD
• Range: TeSys D
• Poles: 3P
• Contact configuration: 3 NO (main poles)
• Rated current Ie: 40 A (AC-3, ≤440 V AC); 60 A (AC-1, ≤440 V AC, < 60 °C)
• Utilisation category: AC-3, AC-4
• Motor power (AC-3): 18.5 kW at 380–400 V AC, 50/60 Hz
• Rated voltage (Ue): ≤690 V AC, 25–400 Hz
• Coil voltage: 24 V DC (standard coil)
