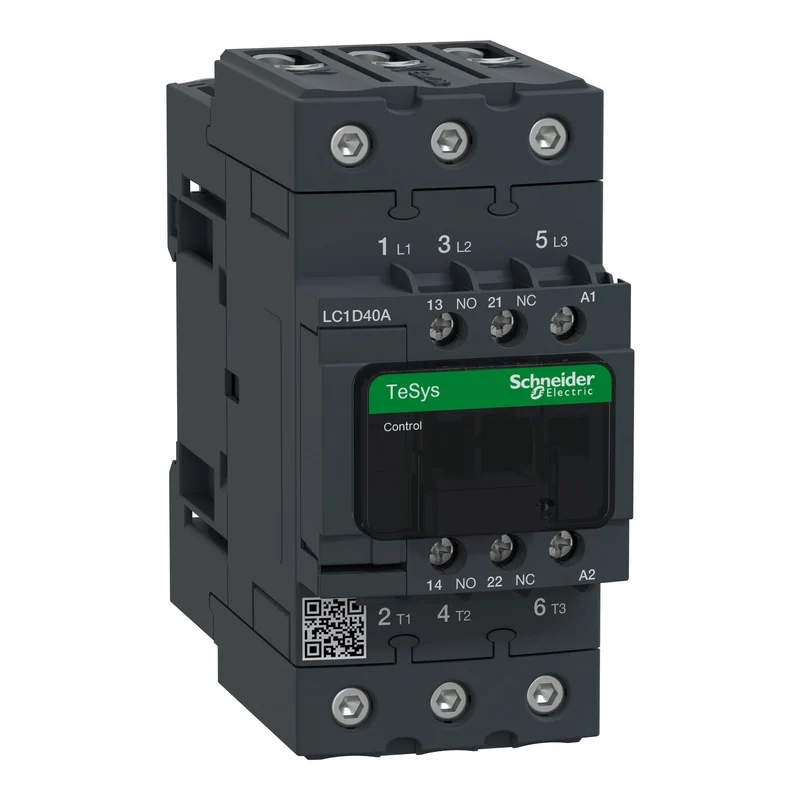

Schneider LC1D40AM7 TeSys D Contactor 3P 40A 22kW 220V AC Coil

The LC1D40AM7 is a 3-pole contactor from the Schneider Electric TeSys Deca range, designed for motor control and switching duties across utilisation categories AC-3, AC-3e, and AC-4.

• Reference: LC1D40AM7
• Range: TeSys Deca
• Type: Contactor
• Poles: 3P (3 NO)
• Rated operational current Ie: 40 A (AC-3 / AC-3e, ≤440 V)
• Utilisation categories: AC-3, AC-3e, AC-4
• Motor power (AC-3): 22 kW at 415–440 V AC 50/60 Hz
• Motor power (AC-3e): 11 kW at 220–230 V AC 50/60 Hz
• Coil voltage: 220 V AC 50/60 Hz
• Rated voltage: ≤440 V
