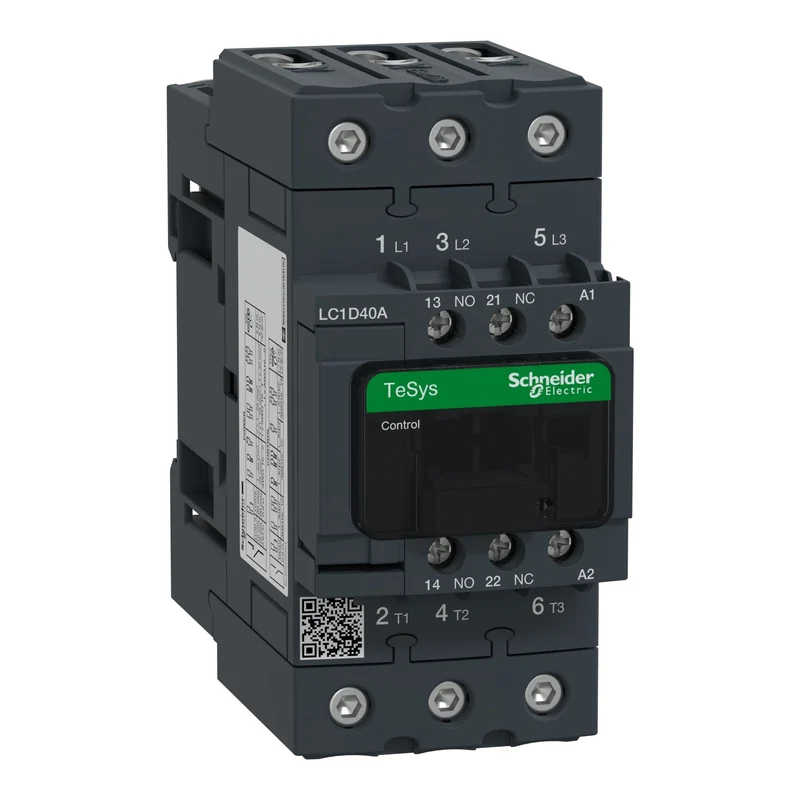

Schneider LC1D40AP7 TeSys D Contactor 3P 3NO 40A 18.5kW 230V AC Coil

The LC1D40AP7 is a 3-pole TeSys D series contactor from Schneider Electric, rated 40 A at AC-3 with a 230 V AC 50/60 Hz control coil. It is suited to the switching and direct-on-line starting of three-phase induction motors and is rated for both AC-3 and AC-4 utilisation categories.

• Reference: LC1D40AP7
• Range: TeSys D
• Type: Contactor
• Poles: 3P
• Contact configuration: 3 NO (main contacts)
• Rated current Ie (AC-3): 40 A at ≤ 440 V AC
• Motor power (AC-3): 18.5 kW at 380–400 V AC 50/60 Hz
• Utilisation category: AC-3, AC-4
• Coil voltage: 230 V AC 50/60 Hz
