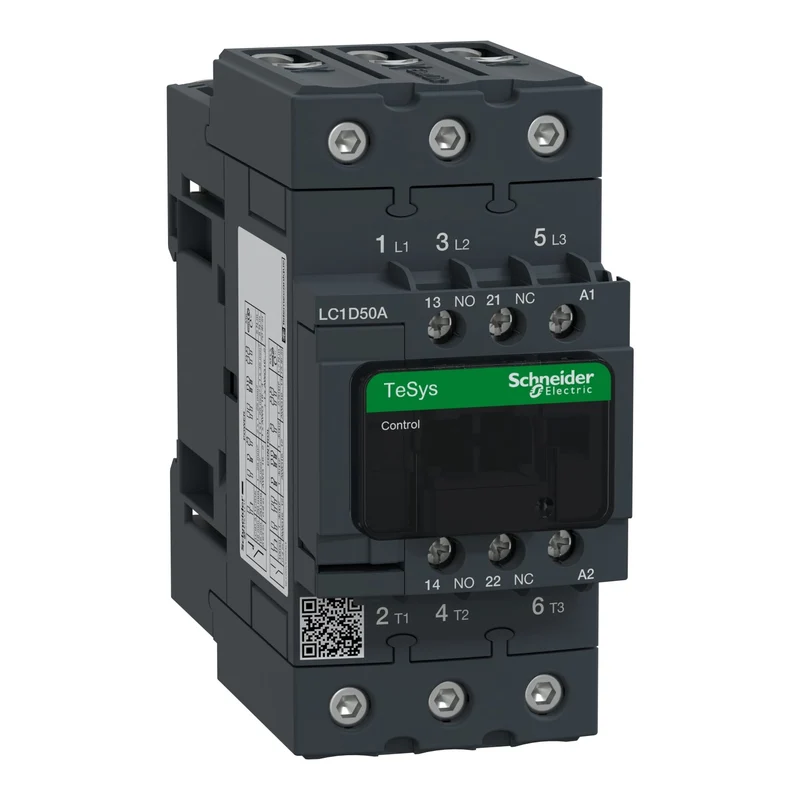

Schneider LC1D50AB7 TeSys LC1D Contactor 3P 3NO 50A 15kW 24V AC Coil

The Schneider Electric LC1D50AB7 is a TeSys D series 3-pole contactor for AC motor switching and industrial load control. It carries a rated operational current of 50 A and operates from a 24 V AC 50/60 Hz coil, suitable for AC-3 and AC-4 duty across a broad supply voltage range.

• Reference: LC1D50AB7
• Range: TeSys D
• Poles: 3P
• Contact composition: 3 NO (normally open)
• Rated operational current Ie: 50 A at ≤440 V AC, AC-3 (< 60 °C)
• Rated voltage Ue: ≤690 V AC, 25–400 Hz
• Utilisation category: AC-3, AC-4
• Coil voltage: 24 V AC 50/60 Hz
• Motor power (AC-3): 15 kW at 220–230 V AC 50/60 Hz
