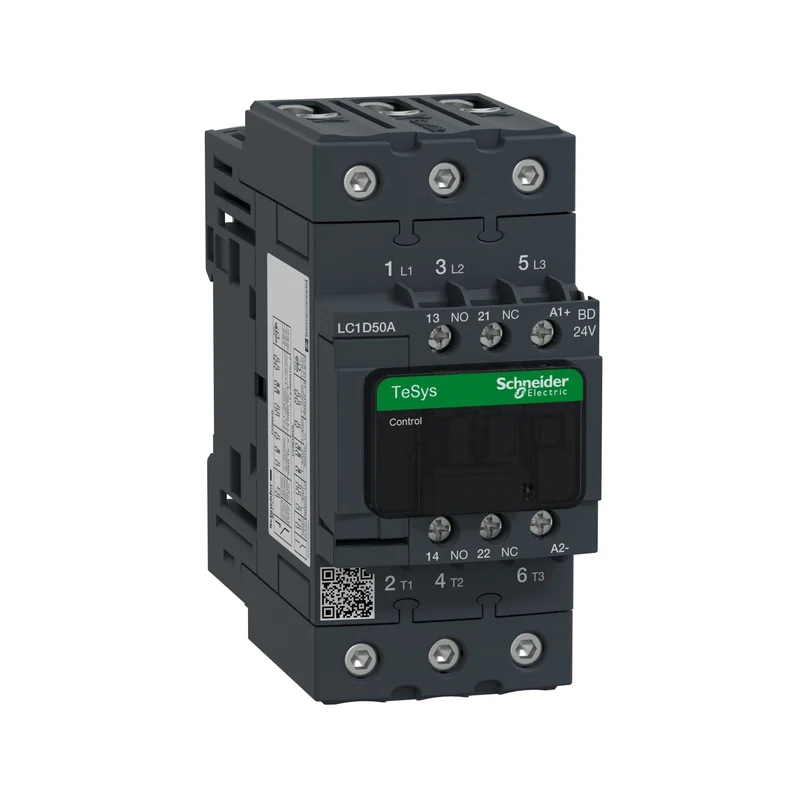

Schneider LC1D50ABD TeSys D Contactor 3P 3NO 50A 15kW 24V DC Coil

The Schneider Electric LC1D50ABD is a TeSys D series 3-pole contactor for motor control and general switching in industrial installations, rated at 50 A under AC-3 conditions with a 24 V DC coil.

• Reference: LC1D50ABD
• Range: TeSys D
• Type: Contactor
• Poles: 3P (3 normally open)
• Rated current (Ie): 50 A at ≤440 V AC (AC-3, < 60 °C)
• Rated voltage (Ue): ≤690 V AC, 25...400 Hz (main circuit)
• Motor power: 15 kW at 220...230 V AC, 50/60 Hz (AC-3)
• Utilisation category: AC-4
• Coil voltage: 24 V DC
