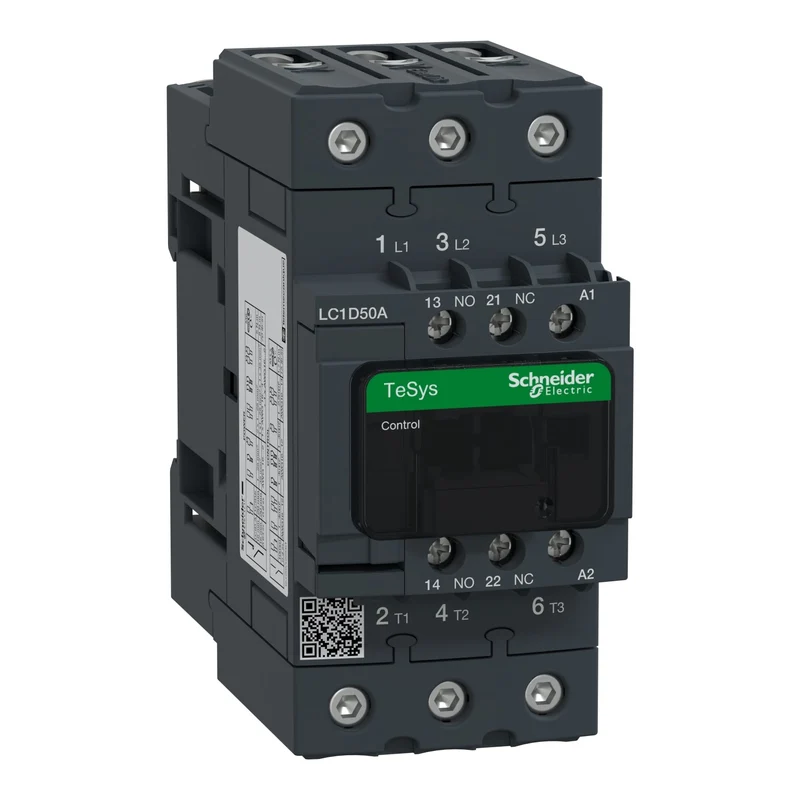

Schneider LC1D50AP7 TeSys D Contactor 3P 50A 15kW 230V AC Coil

The Schneider Electric LC1D50AP7 is a 3-pole TeSys D series contactor for switching and controlling AC motor loads in industrial applications, rated 50 A at AC-3 with a 230 V AC 50/60 Hz coil.

• Reference: LC1D50AP7
• Range: TeSys D
• Model: LC1D
• Type: Contactor
• Poles: 3P (3 NO)
• Rated operational current (Ie): 50 A at ≤440 V AC (AC-3)
• Rated voltage (Ue): ≤690 V AC, 25...400 Hz (power circuit)
• Motor power (AC-3): 15 kW at 220...230 V AC 50/60 Hz
• Utilisation category: AC-4
• Coil voltage: 230 V AC, 50/60 Hz
