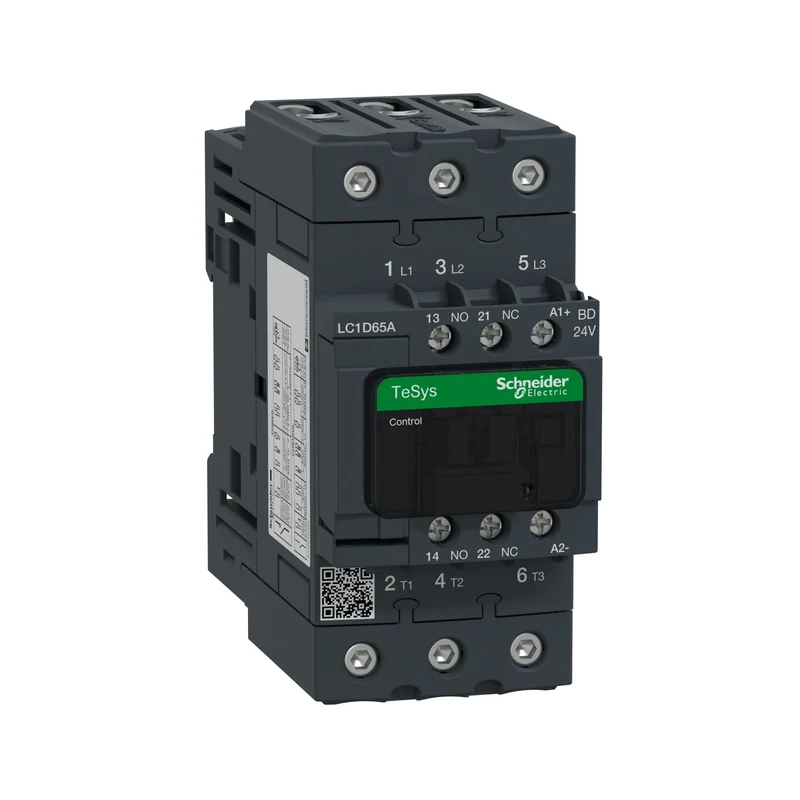

Schneider LC1D65ABD TeSys D Contactor 3P 3NO 65A 24V DC Coil

The Schneider Electric LC1D65ABD is a 3-pole contactor from the TeSys D range, designed for switching and controlling three-phase motors and other loads in industrial power circuits.

• Reference: LC1D65ABD
• Range: TeSys D
• Poles: 3P
• Contact composition: 3 NO (main poles)
• Rated operational current Ie: 65 A at ≤ 440 V AC (AC-3); 80 A at ≤ 440 V AC, < 60 °C (AC-1)
• Utilisation categories: AC-3, AC-4
• Rated voltage Ue: ≤ 690 V AC, 25–400 Hz (main circuit)
• Motor power: 11 kW at 400 V AC, 50/60 Hz (AC-4)
• Coil voltage: 24 V DC (standard coil)
