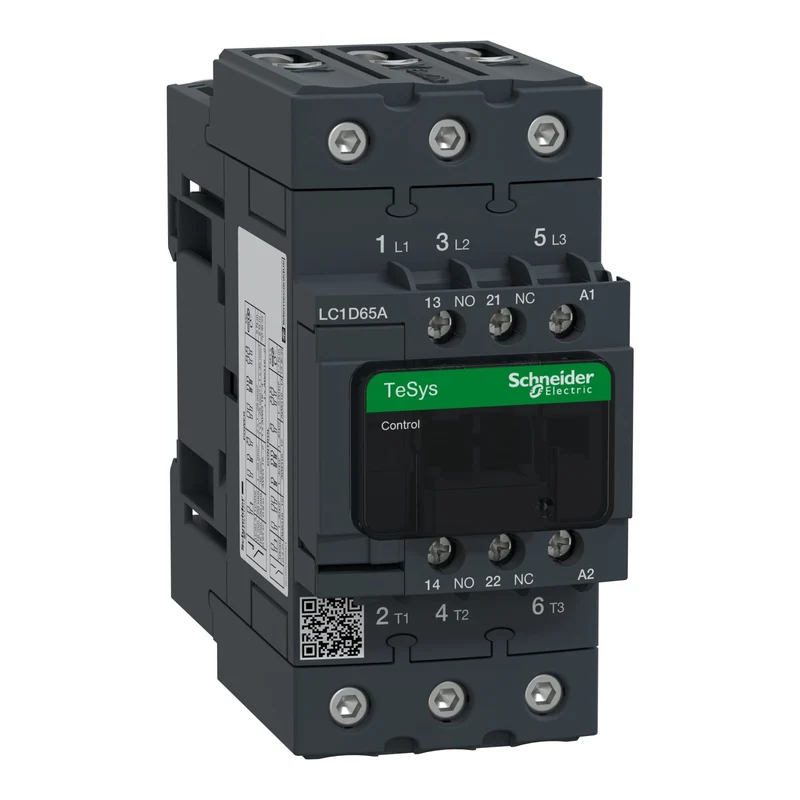

Schneider LC1D65AP7 TeSys D Contactor 3P 3NO 65A 230V AC Coil

The Schneider Electric LC1D65AP7 is a TeSys D series 3-pole contactor for switching and controlling AC motor and resistive loads in three-phase industrial power circuits up to 690 V AC.

• Reference: LC1D65AP7
• Range / Model: TeSys D / LC1D
• Poles: 3P
• Contact configuration: 3 NO (main power contacts)
• Rated operational current (Ie): 65 A at AC-3 (≤ 440 V); 80 A at AC-1 (≤ 440 V, below 60 °C)
• Utilisation category: AC-3; AC-4
• Rated supply voltage (Ue): ≤ 690 V AC, 25–400 Hz (main circuit)
• Motor power: 11 kW at 400 V AC 50/60 Hz (AC-4)
• Coil voltage: 230 V AC 50/60 Hz
