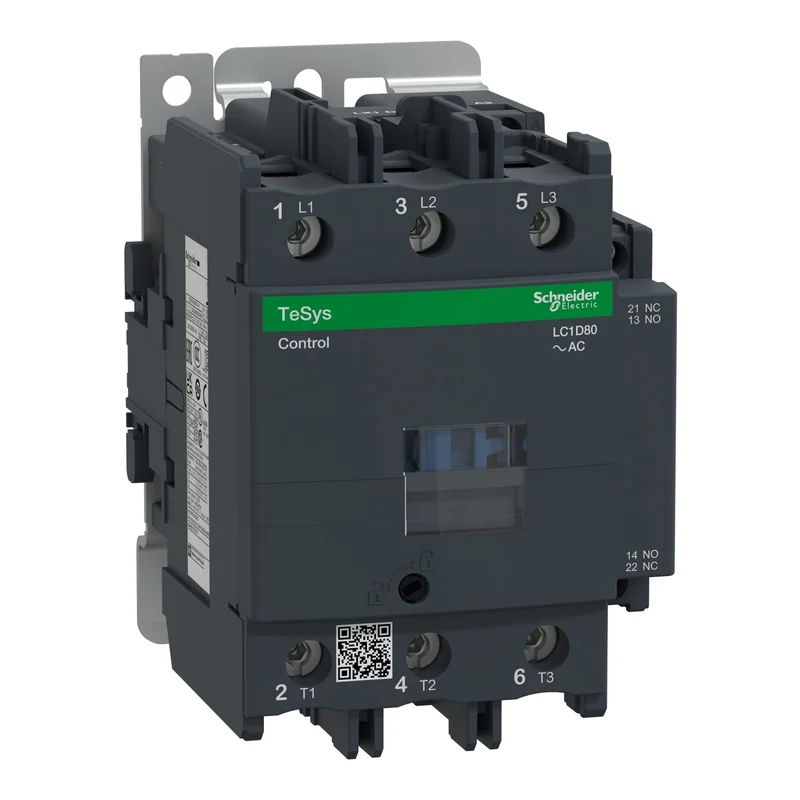

Schneider LC1D80B7 TeSys D Contactor 3P 80A 22kW 24V AC Coil

The Schneider Electric LC1D80B7 is a 3-pole contactor from the TeSys D range, rated for AC-3 duty in industrial motor-switching and power-control applications.

• Reference: LC1D80B7
• Range: TeSys D, model LC1D
• Type: 3-pole contactor
• Contact configuration (main circuit): 3 NO
• Rated operational current Ie (AC-3, ≤440 V): 80 A
• Rated operational current Ie (AC-1, ≤1000 V AC, < 60 °C): 125 A
• Motor power (AC-3, 220...230 V AC 50/60 Hz): 22 kW
• Utilisation category: AC-3
• Coil voltage: 24 V AC 50/60 Hz
