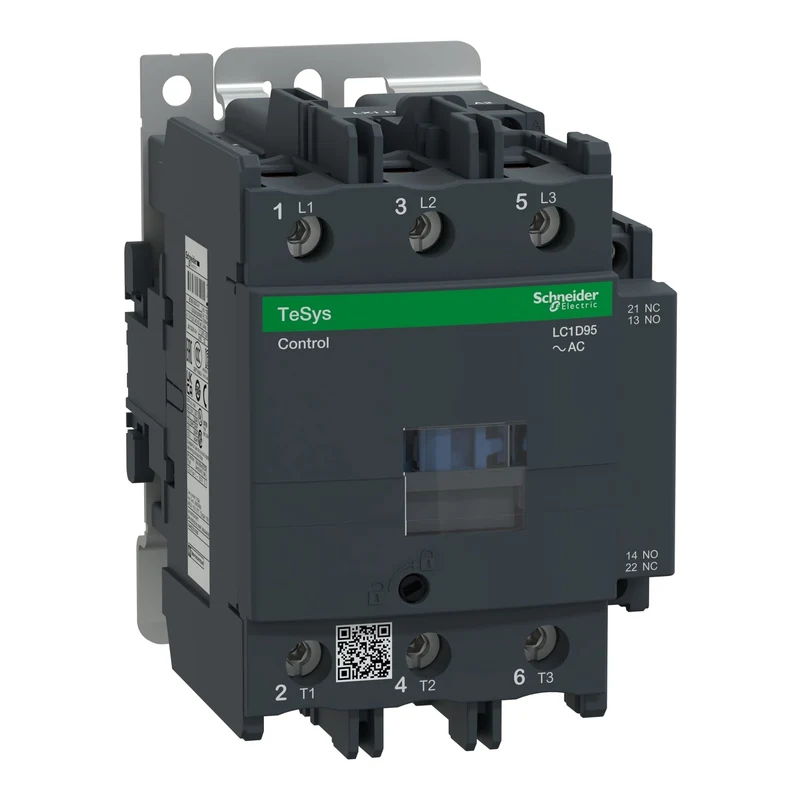

Schneider LC1D95B7 TeSys LC1D Contactor 3P 3NO 95A 25kW 24V AC Coil

The Schneider Electric LC1D95B7 is a 3-pole TeSys D series AC contactor designed for motor switching and control in industrial power distribution, rated at 95 A under AC-3 utilisation conditions.

• Reference: LC1D95B7
• Range / Model: TeSys D, LC1D
• Type: Contactor
• Poles / Contact composition: 3P, 3 NO (main poles)
• Rated operational current Ie: 95 A at ≤440 V (AC-3, < 60 °C)
• Utilisation category: AC-3
• Motor power (AC-3): 25 kW at 220...230 V AC 50 Hz
• Coil voltage: 24 V AC 50/60 Hz
• Rated voltage Ue (main circuit): ≤690 V AC 25...400 Hz
